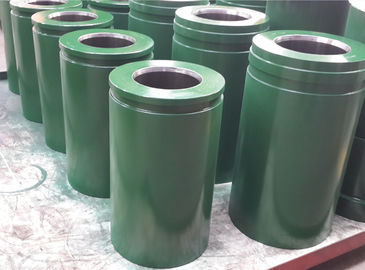

Oilwell A850PT Mud Pump Liners
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
www.premiumrigparts.com
High Chrome Sleeve Liner
The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size.
Rated for all drilling operations up to 5,000 PSI and above
Bore hardness is 62 - 69 Rockwell
Plip design to prevent inner sleeve slippage
Extremely long service life
|
Mud Pump Models
Liner Inch |
4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| Continental Emsco F-800 / 1000 | / | 05495450 | 05495500 | 05495550 | 05495600 | 05495650 | 05495700 |
| Continental Emsco FB-1300 / 1600 | 05499400 | 05499450 | 05499500 | 05499550 | 05499600 | 05499650 | 05499700 |
| Continental Emsco FC-2200 | / | / | 05551500 | 05551550 | 05551600 | 05551650 | 05551700 |
| Gardner Denver PAH-275 |
PA I3940 05519400 |
PA 13945 05445450 |
PA 13950 05445500 |
/ | / | / | / |
| Gardner Denver PZ-7 | PY13940 | PY13945 |
PY13950 05493087 |
PY13955 05493085 |
PY13960 05493083 |
PY13965 05493081 |
PY13970 05493079 |
| Gardner Denver PZ-8/9 |
206PZJ456 05493400 |
205PZJ456 05493450 |
204PZJ456 05493500 |
203PZJ456 05493550 |
202PZJ456 05493600 |
200PZJ456 05493650 |
207PZJ456 05493700 |
| Gardner Denver PZ-10/11 |
206PZL456 05496400 |
205PZL456 05496450 |
204PZL456 05496500 |
203PZL456 05496550 |
202PZL456 05496600 |
201PZL456 05496650 |
200PZL456 05496700 |
| Gardner Denver PZL |
206PZL456 05496400 |
205PZL456 05496450 |
204PZL456 05496500 |
203PZL456 05496550 |
202PZL456 05496600 |
201PZL456 05496650 |
200PZL456 05496700 |
| Gardner Denver PZL-B-7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Gardner Denver PZL W/SWFE 7500 PSI | 05465400HP | 05465450HP | 05465500HP | 05465550HP | 05465600HP | 05465650HP | 05465700HP |
| Gardner Denver PX-11 7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Ideco T-500 | / | 05512450 | 05512500 | 05512550 | 05512600 | 05512650 | 05512700 |
| Ideco T-800 / 1000 | 05502400 | 05502450 | 05502500 | 05502550 | 05502600 | 05502650 | 05502700 |
| Ideco T-1300 / 1600 | / | 05507450 | 05507500 | 05507550 | 05507600 | 05507650 | 05507700 |
| National 7P-50 | 05466040 | 05466045 | 05466050 | 05466055 | 05466060 | / | / |
| National 8-P-80 | 05464400 | 05464450 | 05464500 | 05464550 | 05464600 | 05464650 | / |
| National 9-P-100 / 10-P-130 | 05465400 | 05465450 | 05465500 | 05465550 | 05465600 | 05465650 | / |
| National 12-P-160 | 05466400 | 05466450 | 05466500 | 05466550 | 05466600 | 05466650 | 05466700 |
| National 14-P-220 | 05545400 | 05545450 | 05545500 | 05545550 | 05545600 | 05545650 | 05545700 |
| National JWS-165/340 | 05531400 | 05531450 | / | / | / | / | / |
| National JWS-400 | 05524400 | 05524450 | 05524500 | 05524550 | 05524600 | / | / |
| Oilwell HD-1700-PT | / | / | 05326500 | 05326550 | 05326600 | 05326650 | 05326700 |
| Oilwell A-600-PT | 05329400 | 05329450 | 05329500 | 05329550 | 05329600 | 05329650 | 05329700 |
| Oilwell A-850-PT / A-1100-PT | 05330400 | 05330450 | 05330500 | 05330550 | 05330600 | 05330650 | 05330700 |
| Oilwell A-1400-PT / A-1700-PT | 05326400 | 05326450 | 05326500 | 05326550 | 05326600 | 05326650 | 05326700 |
