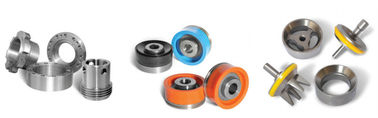

Southwest mud pump fluid end modules, Zirconia Liners, Hy-Chrome Liners, Urethane bonded pistons, Valve and seats

Southwest Oilfield Products, Inc. manufacture rugged and reliable equipment for specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.

History of Southwest Oilfield Products

• 1947 Founded with the Design of the First Bonded Piston, the Fail Safe Piston
• 1974 Introduced the Two Piece L-Shaped Fluid-End
• 1988 Introduced the Dual-Duro Piston
• 1996 Introduced Ceramic Liners
• 2000 Introduced Zirconia Liners
• 2004 Introduced Black Cat Piston
• 2013 Introduced Module Service Tool Kits; Research and Development of Frac Pump Consumables
• 2014 Introduced BullDog Piston

Cost savings on mud pump spare parts and service:

Premium have delivered solid cost savings to our customers. This is due to our lower cost base, system with access to identical parts directly from manufacturer, and utilizing our experienced drilling equipment employees at very competitive rates.

Below selection of popular identical mud pump parts that can be supplied by Premium at major cost savings:

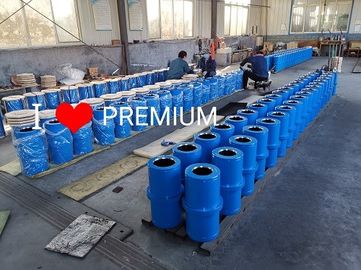

• Liners
• Piston

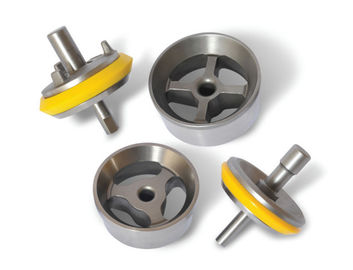

• Full open Valves
• Valve seats
• Discharge modules
• Suction modules
• Crankshaft
• Pinion shaft
• Bearings
• Wear plate
• Rod wipers
• Seals and gaskets
• Studs and nuts
• Pulsation dampeners
• Pulsation bladders
• Oil pump

Premium supplies overhaul and parts for the following mud pump models:

• National 10-P-130 Triplex Mud Pump
• National 12-P-160 Triplex Mud Pump
• National 14-P-220 Triplex Mud Pump
• Continental Emsco F-1000 Triplex Mud Pump
• Continental Emsco FB-1300 Triplex Mud Pump
• Continental Emsco FA-1600, FB-1600, FC-1600, FD-1600 Triplex Mud Pump
• Continental Emsco DC-1000 Mud Pump
• Wirth Mud Pump TPK 1000
• Wirth Mud Pump TPK 1300
• Wirth Mud Pump TPK 1600
• Wirth Mud Pump TPK 2000
• Wirth Mud Pump TPK 2200
• Gardner Denver PAH
• Gardner Denver PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
• Gardner Denver TEEA, TEEB, TEEC, TEED, TEEE, TEEF, TEEG
• Lewco Mud Pumps
• Drillmec Mud Pumps

Premium can supply overhaul and parts compatible with the following Mud Pump makers and trademarks: National Oilwell Varco (NOV), MHWirth, Continental Emsco, Gardner Denver, Lewco, Drillmec, and others. Premium is an independent supplier of drilling equipment parts.

Premium is neither a licensee, nor is affiliated with any of the named original equipment manufacturers (OEM). The manufacturer’s names, equipment names, or trademarks used herein are solely for identification purposes, and are not intended by Premium to cause confusion as to the source, sponsorship, or quality of the parts supplied by Premium. The original equipment manufacturers named above and throughout this website do not sponsor, promote, warranty or endorse Premium’s supply of parts.

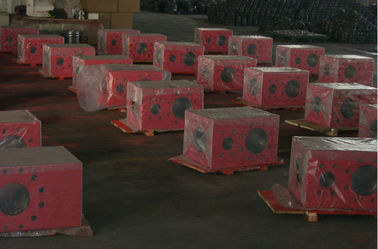

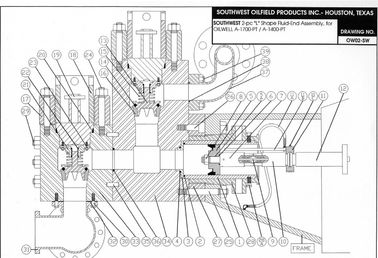

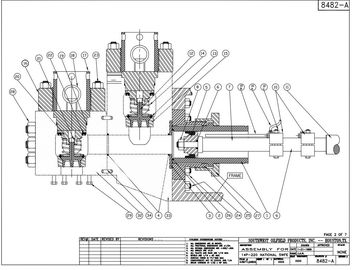

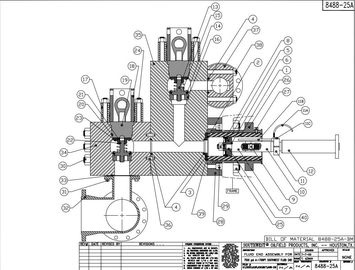

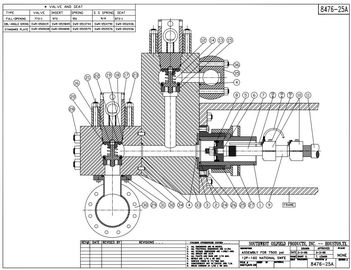

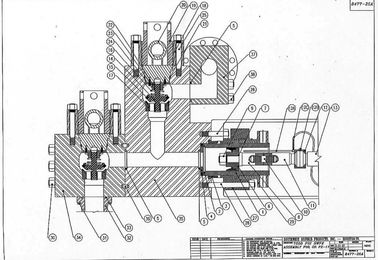

Southwest Oilfield Products’ two-piece L-shaped fluid-ends have become the recognized standard.

The L-shaped two-piece fluid-end was adopted into the market over 35 years ago because it was an obvious improvement over one piece modules. Since the suction module is separate from the discharge module, it is possible to replace the suction module when it wears out instead of replacing the entire fluid end.

Changing valves or seats on a two piece module is also much easier, safer and faster than changing valves or seats on a one piece module.

Southwest’s L-shaped fluid-end is manufactured from heat-treated 4130 forgings and equipped with our quick-change valve cover system; our L-shaped modules offer unmatched performance.

Southwest’s second to none manufacturing is backed by the best warranty on the market.

Zirconia Liners

Advanced Zirconia Liners are significantly harder than hardened steel liners, and are tougher than any otherceramic available. The ceramic used in these liners are extremely resistant to corrosion and heat.

Zirconia is more than 25% harder than Chromium alloys which results in asignificantly lower wear rate oftheliner sleeve. Considering the smoother surface, piston life is greatly extended. In a past case study, apump with Chromium liners used 55 pistons over the test period compared to only 12 pistons used in the pump outfitted with Zirconia liners. Piston savings along exceeded $8,000 not to mention reduced maintenance downtime.

Traditional liner hourly cost is approximately $1.05 per hour, while Zirconia Liners are approximately $.23 per hour.

Triplex Grayloy Liners

For use in today’s higher pressure and faster stroking triplex pumps, Grayloy liners are made of the highest quality high-chrome premium alloy steel. They are manufactured to provide maximum runs at minimal cost.

The BullDog Piston

Over 60 years ago, Southwest Oilfield Products was founded on mud pump piston innovation and we continue to carry this legacy forward with the introduction of our Bulldog piston. This rugged and reliable piston is engineered for high temperature service and other demanding drilling conditions. Key features include:

• Engineered for high temperature & pressure service (300°F / 7500PSI)
• Suitable for oil, synthetic or water-based muds
• Excellent chemical and abrasion resistance
• Contains proprietary blend of lubricating agents to reduce friction and enhance running life.

The Fail-Safe Piston

In 1947, the first bonded piston was introduced into the market; since then, the Fail-safe piston has remained virtually unchanged. The one-piece bonded piston design eliminates leakage points and is resistant to abrasive fluids. This fail-safe piston seals off to greater diameters as the liner wears.

• Performs best in water-based muds but can be used in oil-based muds
• Suitable for moderate temperature service (Less than 175°F)
• Excellent Chemical and Abrasion Resistance

The Dual-Duro Piston

This premier piston has been in service since 1985, providing unmatched performance under extreme drilling conditions. It performs well in exotic drilling fluids and moderate temperatures.

Made of dual-durometer polyurethane, this piston is designed to resist extrusion thus extending the life of the piston.

• Made with durable Polyurethane elastomer
• Performs best in oil-based mud
• Suitable for moderate temperature service (Less than 175°F)
• Excellent Chemical and Abrasion Resistance

The RnR Piston

Southwest’s RnR Piston is a renewable rubber piston in that the rubber on this non-bonded piston can be replaced by a new piston rubber once the old one has reached its usable life. The proprietary blend of rubber and fabric used in the RnR piston resists the pinching and extrusion that commonly occurs in the heel of the piston. The use of synthetic fabric in the Southwest RnR piston virtually eliminates the loss of heel strength, caused by water absorption allowing the piston to achieve a higher level of performance compared to competing designs.

• Available for single and double-acting pump designs
• Replaceable piston rubber reduces operating expense
• Suitable for water and some sythetic-based drilling muds
• Synthetic fabric yields a stronger, denser and stiffer heel for superior performance

Full traceability is provided with all products sold, including pistons. Traceability markings include: operators ID, packers ID, date of urethane pour, part number of piston, work order number, Made in USA brand, and SWOP logo.

The Black Cat Piston

Southwest's Black Cat piston is a premier nitrile-compound piston that can be utiized in a variety of drilling muds. Developed to handle the numerous chemicals found in drilling mud today, the Black Cat piston elastomer has excellent abrasion, chemical and heat resistance.

• Excellent liner wear characteristics
• Suitable for moderate temperature service (180°F)
• Can be used in water, some oil and synthetic drilling muds
• HIgh resistance to chemcial breakdown, tearing and abrasion

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

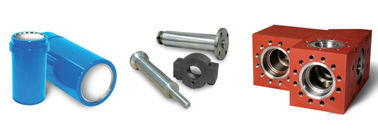

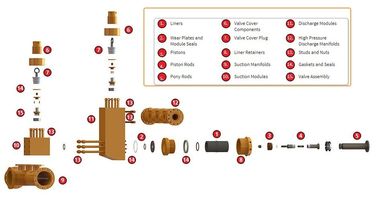

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900
