SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

China SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier
SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner supplier

Large Image :  SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

Product Details:

Place of Origin: CHINA
Brand Name: SOUTHWEST, National, Gardner Denver
Certification: API 7K
Model Number: 14P220

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: In stock
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 3000 pieces per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,Hydraulic,diesel
Pressure: High Pressure,Low Pressure Application: Mining,oil,Chemical
Structure: Piston Pump,Single-stage Pump Fuel: Diesel,Electric
Standard Or Nonstandard: Standard Theory: Centrifugal Pump,Reciprocating Pump,Diaphragm Pump
Type: Mud Pump Weight: 100-3700kg
Color: Blue,red And So On,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Feature: Compact Size
Product Name: Mud Pump Head: 10m Mud Suction Pump
Oem: Can Be Accept,Applicable Inlet Pipe (mm)/(in): DN200 / 8
Condition: New

SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



SOUTHWEST 8482-A

National 14P-220



ITEM P/N DESCRIPTION QTY
  8482-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3, 4, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 32, 33, 34)
1 6382G-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)) 3
2 2930-XX LINER SEAL 3
3 8482-4 WEARPLATE 3
4 2930-09 WEARPLATE & MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (W/ ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY USE 6282C) 6
10A 1200H30 HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS) 6
10B 1200160 PIPE (3/8” X 16” GALVANIZED AND THREADED ON ONE END) 6
10C 4019-77 ROD CLAMP BOLT (3/4-10 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 6200G82 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4482 THREADED FLANGE 6
17 4582 SCREW GLAND 6
18 4682A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS, AND BUSHING) 6
19 P113 HP VALVE COVER PLUG NITRILE SEAL 6
20 4782R VALVE GUIDE (COMPLETE W/ BUSHING #4700I) 6
21 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4019-75 VALVE GUIDE SCREW 24
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 1/2-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4019-74 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-2S SUCTION MODULE 3
33 8482-1D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 2982-3 DISCHARGE END ADAPTER SEAL 2
36 4017-4 DISCHARGE END ADAPTER CAP SCREW 24
37 BX169 RING JOINT 2
38 4020-21 BLIND FLANGE STUDS (WITH SW PART# HHN1125-7 1-1/8”-7 HEAVY HEX NUTS) 24
39 2982-2 DISCHARGE CONNECTOR SEAL 4
40 8382-1 DISCHARGE CONNECTOR 2
41 8382-3 DISCHARGE CONNECTOR BACK-UP RING 2
42 4018-18 DISCHARGE CONNECTOR CAPSCREW 16
43 2982-1 DISCHARGE CONNECTOR END SEAL 2
44 8382-2 DISCHARGE CONNECTOR ADAPTER 2
45 8382-4 DISCHARGE END FLANGE ADAPTER 2



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner




Southwest

A1400/1700PT Mud Pump

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.

Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.

Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump linerSOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
    FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3" 16







SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

MISSION "L" MODULE FOR A-1400-PT, A-1700PT       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9

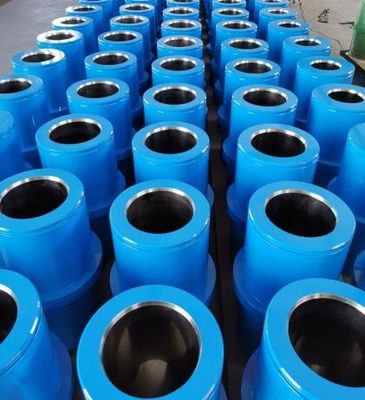

SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80704032 FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP 1
1 80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) 3
3 80704002 STUD, (DISCHARGE TO SUCTION MODULE) 24
4 PEP55 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 80704005 VALVE COVER (INCLUDES 11,12,& 17) 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 IDT800TRSN NUT,HEX HEAVY 12
11 PZ789VGI BUSHING, VALVE GUIDE 6
12 12PVGASW GUIDE, VALVE 6
13 8P80TRSN NUT, POWER FRAME STUD 30
14 PEP75 CAPSCREW, LINER RETAINER 18
15 12PLASW RETAINER, LINER FLANGE 3
16 12PLANSW NUT, LINER RETAINER 3
17 7007303 SCREW, VALVE GUIDE 12
18 6300240 NUT, HEAVY HEX FOR THREADED RING 72
19 80700014 STUD, THREADED RING 72
20 PEP70 PIN, DOWELL 6
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW WEARPLATE 3
27 NAT12P160PFS STUD, POWER FRAME 30





SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80700031 FLUID END ASSEMBLY 14P220 (7500 PSI) 1
1 80700012 DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) 3
2 80700000 MODULE,DISCHARGE- 14-P-220 7500PSI 3
3 80700014 STUD, 1-1/2-6 X12 TAPER LOK TOP 84
4 2408027 STUD,1-1/2 X 7-7/8 TOP TAPER LOK 30
5 2408047 STUD,1-1/4 X 7 TOP TAPER LOK 18
6 80700015 STUD, 2 X 26-1/2 DISCHARGE/SUCTION 24
7 6300200 NUT,HEX HEAVY 1-1/4-7UNC 18
8 6300240 NUT, HEX HEAVY 1-1/2-6UNC 2H 126
9 6300320 NUT,HEX HEAVY 2" 8UN-2A 24
10 80700016 NUT,HEX HEAVY 2" 8UN-2A 12
11 80700013 SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) 3
12 80700001 SUCTION MODULE 3
13 80700002 DISCHARGE MANIFOLD 1
14 1295317 SUCTION MANIFOLD 1
15 700048511 SCREW,HEX HD CAP 7/8 X 3 24
16 1540021 SEAL,SUCTION 3
17 80700003 VALVE COVER 6
18 80700004 THREADED RING 6
19 80700005 THREADED CAP 6
20 88500223 WEAR PLATE OUTER 3
21 88500222 WEAR PLATE , GREASE 3
22 80700006 SHIM PACK 3
23 700039511 SCREW,HEX HD CAP 5/8 X 1-1/2 18
24 9700369 VALVE , WHITE LIGHTNING SERIES 8 6
25 9702653 SEAT , HD8-S07 6
26 9700372 INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) 6
27 55413256 SPRING, 5710-101 6
31 80700011 GUIDE,VALVE-DISCHARGE 3
32 80700010 GUIDE,VALVE -SUCTION 3
33 PZ789VGI INSERT,VALVE GUIDE 6
34 2405086 SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 24
35 6511416 PIN, DOWELL STD HDN & GRD 7/8 3
36 1295266 PLATE,WEAR 14-P-220 3
37 07207109 GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) 6
38 1295257 SEAL,SUCTION MODULE 14-P-220 6
39 99607344 SEAL,DISCHARGE MANIFOLD 3



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner

ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72




FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12



SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900



Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Southwest Pump Parts Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
