Place of Origin CHINA
Brand Name Bomco, Emsco, National, Drillmec, Oilwell, GD, Weatherford, Texma, Southwest
Certification API
Model Number F2200HL, F1600HL, F-1600, F1300, F1000
Minimum Order Quantity 1 piece
Price 1 to 500 usd
Packaging Details Suitable to shipment by sea and air
Delivery Time In stock
Payment Terms T/T, L/C, D/P, D/P, Western Union, T/T
Supply Ability 3000 pieces per month
Product Details
Usage Oil,Water,sewage With Sand,drill Rig Power Electric,diesel
Pressure High Pressure,Low Pressure Application Mining,oil
Structure Piston Pump,Diaphragm Pump,centrifugal Mud Suction Pump Fuel Diesel
Standard Or Nonstandard Standard Type Mud Pump
Color Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty 12 Months Product Name Mud Pump
Oem Can Be Accept,Applicable Condition New
Leave a Message
Product Description



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 0



Description F500 F800 F1000 F1300/1600 F1600HL F2200HL
Liner of Crosshead Upper AH0501010402 AH0801010402 AH1001010402 AH1301010402 AH1301010402 AH2202010402
Liner of Crosshead Lower   AH0801010408 AH1001010409 AH1301010412 AH1301010412 AH2202010403
Pin of Crosshead AH0501010404 AH0801010407 AH1001010408 AH1301010410 AH1301010410 AH2202010410
Extension Rod AH0501010410 AH0801010406 AH1001010407 AH1301010409 AH1301010409 AH2202010409
Sub Rod
Crosshead AH0501010401 AH0801010401 AH1001010401 AH1301010401 AH1301010401 AH2202010401

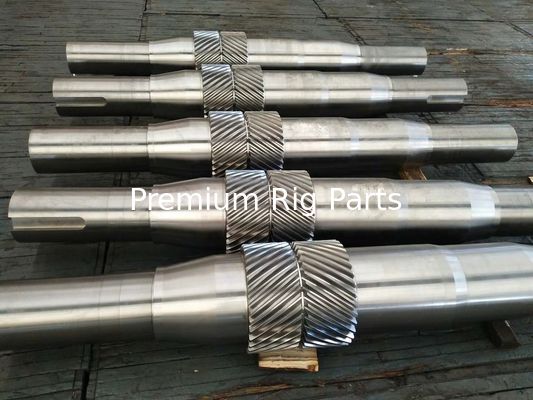

Pinion Shaft AH0501010302 AH0801010302 AH1001010302 AH1601010201 AH1601010201
Wear Ring of Pinion shaft AH0501010303 AH0801010303 AH1001010303 AH1301010303 AH1301010303 AH2202010306
Carrier, Bearing Left AH0501010212 AH0801010213 AH1001010212 AH1601010105 AH1601010105 AH2202010212
Carrier, Bearing Right AH0501010202 AH0801010202 AH1001010202 AH1601010101 AH1601010101 AH2202010202
Connecting Rod AH0501010206 AH0801010206 AH1001010206 AH1601010103 AH1601010103 AH2202010206

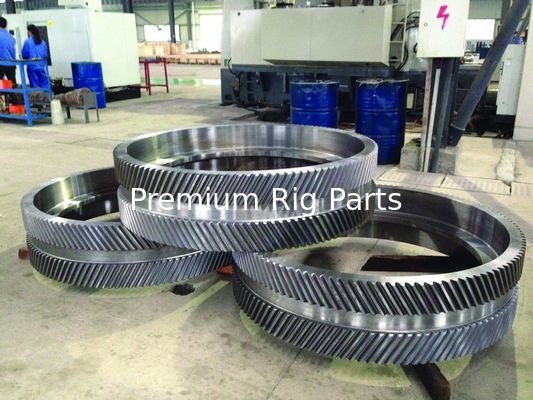

Bull Gear AH0501010210 AH0801010210 AH1001010219 AH160101010400 AH160101010400 AH220201021000
Bolt, Main Bearing AH051020207 AH0801020206 AH1001010215 AH1301010215 AH1301010215 AH2202010215
Bearing, Crosshead 5G354920Q 4G254735Q 5G254936Q AH1301010414 AH1301010414
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H AH1301010312 AH1301010312 AH2202010315
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU AH160101010700 AH160101010700 AH2202010217
Bearing, Main 3053738U 3053748H 4053156H AH160101010800 AH160101010800 AH2202010218



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 1





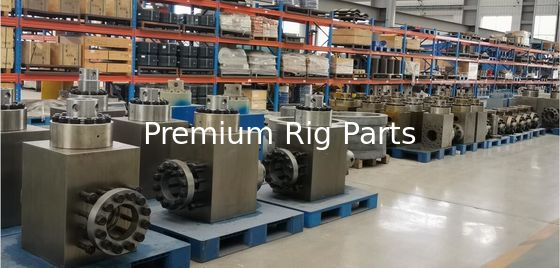

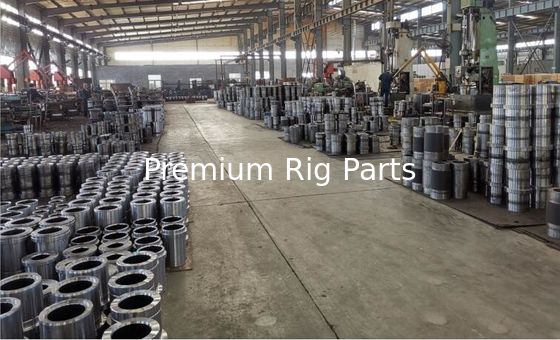

All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 2





Item



Part Number



Description

 Drawing No.
1 AH130102050100 Fluid End Studded Assy AH36001-05.01A.00
2 AH1301010502 Threaded Ring AH36001-05.02
3 AH1301010503 Cylinder Cover AH36001-05.03
4 AH130101050400 Flashboard Assy AH36001-05A.04.00
5 AH130101050500 Valve Guide(Lower) AH36001-05A.05.00
6 AH130101050600 Cylinder Head AH36001-05A.06.00
7 AH1301010507 Alignment Ring AH36001-05A.07
8 AH1301010508 Seal, Cylinder Cover AH36001-05.08
9 AH1301010509 Discharge Manifold AH36001-05.09
10 AH00000101 Valve Spring AH33001-05.16A
11 530301010950053007 O Ring φ95×5.3 (GB3452.1) GB3452.1-82
12 AH0000020300 Valve assy API 7 Full Open AH36001-05.12A.00
13 AH1301010510 Valve Cover Seal AH36001-05.13
14 AH1301020502 Valve Cover AH36001-05.14A
15 AH1301010512 Liner Gasket AH36001-05.15
16 AH1301020503 Wear Plate AH36001-05.16A
17 AH1301010514 Liner Flange AH36001-05.17
18 AH130101051500 Liner Lock AH36001-05.18.00
19 AH1301020504 Piston Rod AH36001-05.19A
20 AH130102050500 Spray Pipe Assy NPT3/8 AH36001-05.20A.00
21 530301012000070007 O Ring φ200×7 (GB3452.1) GB3452.1-82
22 AH1301010518 Liner Locking Ring AH36001-05.22
23 AH130102051200 Hy-Chrome/ Bi-Metal Liner AH36001-05.23A.00
24 AH130102050600 Clamp assy, Piston rod AH36001-05.24.00
27 AH1301010520 Liner End Plate AH36001-05.28.00
28 AH130102050800 Piston AH36001-05.01A.00
29 T500-1027 Stud7/8-9UNCX2 T500-1027
32 AH130102051100 Suction Manifold AH36001-05.32A.00
33 AH130101052300 Shim Set AH36001-05.33A.00
35 AH1001010510 Valve Guide(Upper) AH33001-05.12
36 T500-7002 Stud 1 1/2-8UNX10 1/2 T500-7002
37 T501-2001 Nut 1 1/2-8UN T501-2001
38 AH1001010512 Retainer, Valve Guide Upper AH33001-05.14

Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 3



Item



Part Number



Description

 Drawing No.
1 AH1301020301 Key 2″×2″×11 3/8″ AH36001-03.01
2 AH1601020201 Pinion Shaft AH36001-02.01A
3 AH1301010303 Oil Seal Wear Ring AH36001-03.03
4 AH1301020303 Carrier AH36001-03.04
5 AH1301010305 Gasket AH36001-03.05
6 AH1301010306 Gasket AH36001-03.06
7 AH1301010306 Bearing Carrier AH36001-02.01A
8 AH1301020305 Baffle AH36001-03.10
9 AH1301010309 Gasket AH36001-03.12
10 AH130101031000 Oil Cellecting Box AH36001-03.13.00
11 T500-1019 Bolt 1/2-13UNCX1 3/8 GB5782-86
12 T500-1027 Bolt 7/8-9UNCX2 GB5782-86
13 AH1301010311

Oil Seal



9.125"X10.375"X0.625"

 AH36001-03.08A
14 AH1301010312 Bearing 4G32844H AH36001-03.09
15 420503011221600000 Washer 22 (GB93) GB93-87
16 420503011141600000 Washer 14 (GB93) GB93-87
17 AH1301010313 Flange AH36001-03.11
18 T500-2003 Bolt 5/8-11UNCX1 3/4 GB5783-86
19 420503011161600000 Washer 16 (GB93)





Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 4





Item



Part Number



Description

 Drawing No.
1 AH130101020100 Main Bearing Cover AH37001-01.01C.00
2 AH1601020101 Bearing Carrier(Right) AH37001-01.02
3 AH1301010203 Gasket AH36001-02.03
4 AH1301010204 Inner Race Retainer AH36001-02.04
5 AH160101010200 Outer Race Retainer AH37001-01.03
6 AH1601020102 Connecting Rod AH37001-01.04
7 AH1301020203 Inner Race Retainer (I) AH36001-02.07

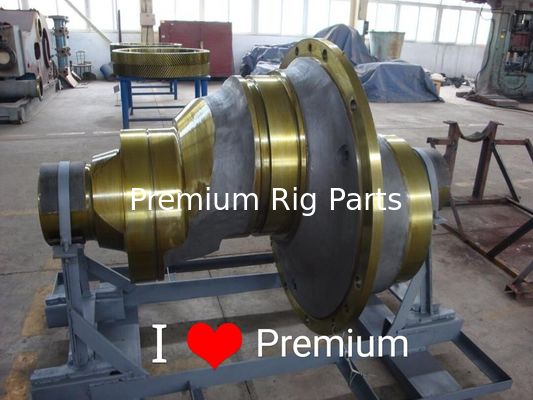

8 AH130102020400 Crankshaft AH36001-02.08A.00
9 AH1301020205 Inner Race Retainer (II) AH36001-02.09

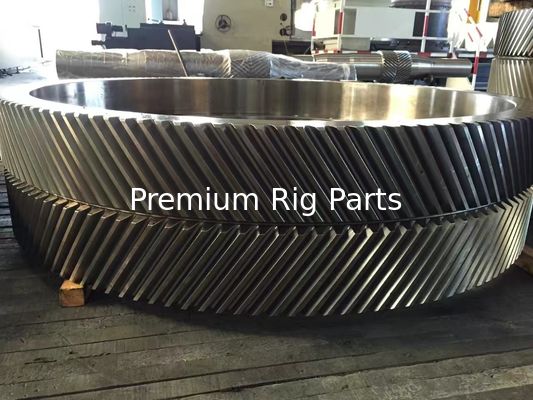

10 AH160101010400 Bull Gear AH37001-01.05D.00
11 T501-303.0 Nut 1 1/2-8UN T52-3007
12 T500-2023 Capscrew 1 1/2-8UNX5 1/2 T52-3007
13 AH1301010211 Spacer, Main Bearing AH36001-02.12
14 AH1601020103 Bearing Carrier (Left) AH37001-01.06
15 AH1601010106 Reteiner AH37001-01.07
16 T500-1018K Capscrew 5/8-11UNCX1 1/2 AH36001-02.16C
17 AH130101021600 Spacer, Main Bearing AH36001-02.17
18 T500-1008 Stud 5/8-11UNCX1 3/4 T52-6006K
19 AH1301010215 Housing Bolt Mean Bearing AH36001-02.16C
20 AH130101021600 Shim Set AH36001-02.17
21 T500-3004K Capscrew 5/8-11UNCX4 T52-6006K
22 AH1601010107 Bearing, Eccentric AH37001-01.08.00
23 AH1601010108 Bearing, Main AH37001-01.09.00
24 420501036160200000 Washer 16 (GB848) GB848-85
25 T500-3006K Capscrew 5/8-11UNCX4 3/4 T52-6004K
26 040101010150600000 Lock Wire Φ1.5 (GB343) GB343-82
27 040101010300600000 Lock Wire Φ3 (GB343) GB343-82





Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 5

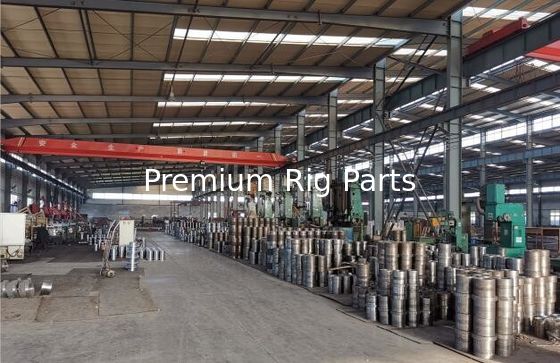

Baoji Oilfield Machinery Co., Ltd. (BOMCO) is a leading research & development manufacturing enterprise, affiliated to China National Petroleum Corporation (CNPC), for oil drilling and production equipments, land drilling rigs, F-series mud pumps, multi-purpose wirelines and drilling rig power control system.

The principal products of BOMCO also include F-series mud pump ranging from 500 HP to 3,000HP, well control and well head equipments, special vehicles, steep pipe, wireline, large size roller bit, power control system, and non-conventional oil and gas equipments.



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 6

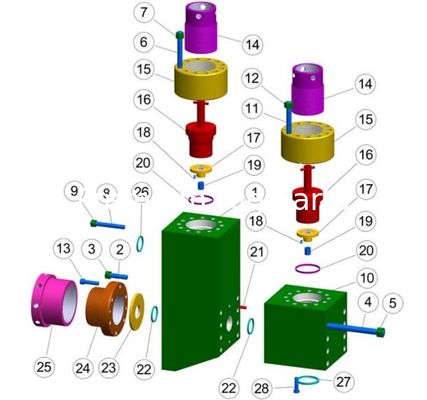

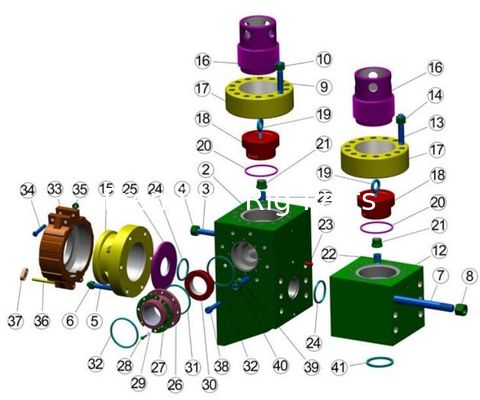

SOUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI A-1700-PT / A-1400-PT 7-1/2” X 12” / 10”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8488-1A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) 3
3 8488-4 WEARPLATE 3
4 2974-1 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD (WITH WATER HOLE) 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) 1
  4475-1A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-1A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) 6
20 P129 HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) 6
21 4775R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
23 4018-88 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4016-96 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 4017-4 LINER RETAINER FERRY HEAD CAP SCREW 24
27 6488-1 LINER RETAINER FLANGE 3
28 6588-1 LINER RETAINER NUT (FOR LARGE BODY LINER) 3
28A 8488-7 LINER RETAINER SET SCREW 9
29 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
30 4018-70 SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) 24
31 8588-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
32 80102003 SUCTION MANIFOLD GASKET 3
33 8488-2S SUCTION MODULE (STUDDED ONLY) 3
34 8488-1D DISCHARGE MODULE (STUDDED ONLY) 3
35 8488-5 DOWEL PIN 6
36 2988 MODULE GASKET 1
37 8388A DISCHARGE MANIFOLD 3
38 568-345 DISCHARGE MANIFOLD GASKET 12
39 4016-3 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT)



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 7



SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. GARDNER DENVER PZ11/10 6 ¾” X 11”





ITEM P/N DESCRIPTION QTY. REQ’D
  8477-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39)
1

1367Y-XX

1367AY-XX

LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX)

LINER 6 ¼” THRU 6 ¾”

 3
2

2930-XXU**

2974-XXU**

LINER SEAL

LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾”

 3
3 8477-29 ALIGNMENT RING 3
4 8477-30 WEARPLATE (REPLACES WEARPLATE NO. 8477-28) 3
5 2988U** WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL 9
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
7 568-225 PISTON O-RING 3
8 6278-25 PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD ELASTIC STOP NUT 3
10 1290-2 PISTON ROD CONNECTING STUD 3
11 6279-1 SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) 3
12 1277CW ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) 3
12A 1200120 SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) 3
12B 4018-96 BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12C 1200H30 HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) 3
13 1200G77 PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) 3
14   VALVE 6
15   VALVE INSERT 6
16   VALVE SPRING 6
17   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
18 4488-25 VALVE COVER FLANGE 6
19 4588-25 SCREW GLAND 6
20 4688-25 PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) 6
21 P115 HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) 6
22 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4018-18 VALVE GUIDE SCREW 12
25 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
26 4019-46 POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
27 6477-25 LINER RETAINER FLANGE 3
28 4019-45 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
29 6577-25 LINER RETAINER NUT 3
30 4019-44 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4017-77 SUCTION MANIFOLD CAP SCREW 24
32 8577-25 SUCTION MANIFOLD 1
33 AJO245 SUCTION MANIFOLD SEAL 3
34 8477-26 SUCTION MODULE 3
35 8477-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8377-27 DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) 1
38 4019-45 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 12



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 8





SOUTHWEST 8482-25A FLUID END

FOR NATIONAL 14-P-220

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 14-P-220 9” X 14”





ITEM P/N DESCRIPTION QTY. REQ’D
  8482-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1 6382G-XX LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL 3
3 8482-5 WEARPLATE 3
4 2988 WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) 6
10A 1200H30 HOSE 3
10B 1200160 PIPE 3
10C 4019-77 ROD CLAMP BOLT 12
11 6200G82 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4609-25 PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-26 SUCTION MODULE 3
33 8482-27 DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
36 8382-25 DISCHARGE MANIFOLD 1





Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 9



SOUTHWEST “OLD STYLE” 8476-A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST (OLD STYLE) NATIONAL 12-P-160 7-1/2” X 12”





ITEM . P/N DESCRIPTION QTY. REQ’D
  8476-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1200140 PIPE 3
10C 4018-92 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-2A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P107 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-2S SUCTION MODULE (STUDDED ONLY) 3
33 8476-1D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 10



OILWELL     A-1400-PT       7-1/2 x 10

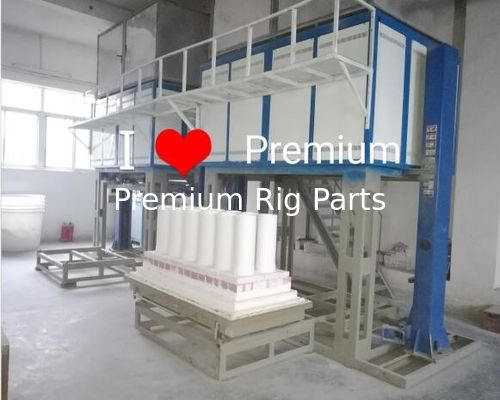

  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME CERAMIC SUPREME WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4"           012180170 1502052 011102926   015180102
4 1/4"
4 1/2"         012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07326500 **05326500*   20100008 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07326550 **05326550* 20100010 20100009 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07326600 **05326600* 6307701 20100011 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4"           012180493 1502061 011103322 015180285 015180284
6 1/2" 07326650 05326651* 20100016 20100012 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 07326700 05326700* 20100018 20100017 012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2" 07326750 05326750 20100020 20100019 012180685 012180683     015180369 015180367
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.         ** Full size liner, change last digit of part no. to "1"
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700368 9700356 060155042   Valve Cover 10300011   07207129
VALVE-Urethane Insert 9700250 9700354 060155041   Cylinder Head
VALVE-Rubber Insert 9700293 N/A 060155033   Plug Seal
SEAT 9702504 9702504 061101507   HYDRA-LOK OEM MISSION L
SPRING 8201650 8201650 055413371   Complete Assembly 80500102 80500103
SPRING-Stainless     055402952
INSERT-Urethane 9705228 9700360 062400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239   Complete Assembly OWFEMA8517PTCA FEMA17ASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded   FEMA17DISSW
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded   FEMA17SUCSW
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded OWFEMA8517PT

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
10300142   1095126 20460669 20150123 20150125 10305203 005402052 PP601020 CRN-1





Product Description

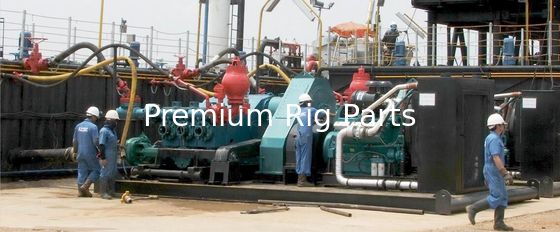

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 11

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 12



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)

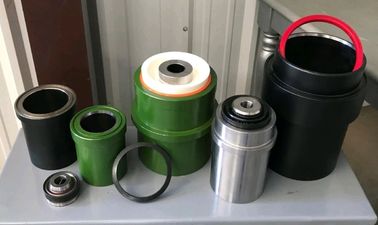

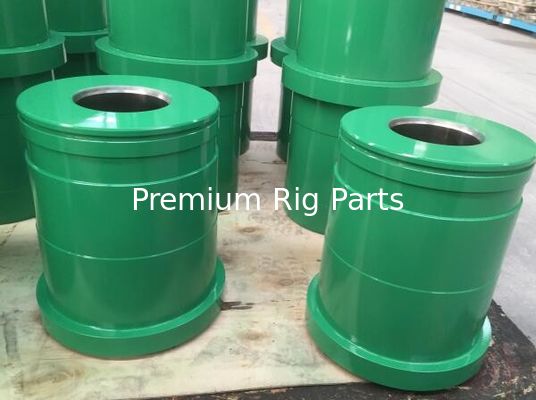

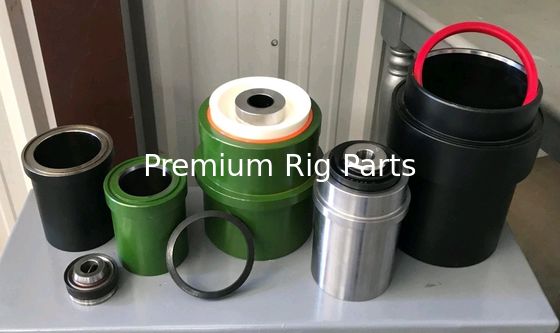

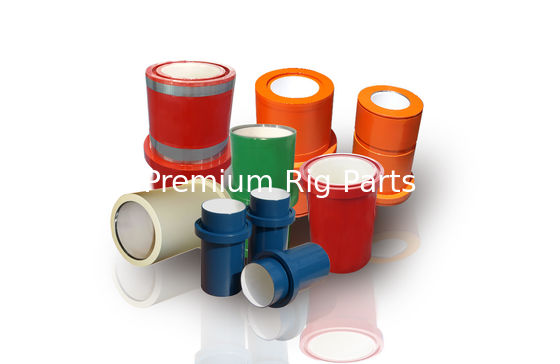

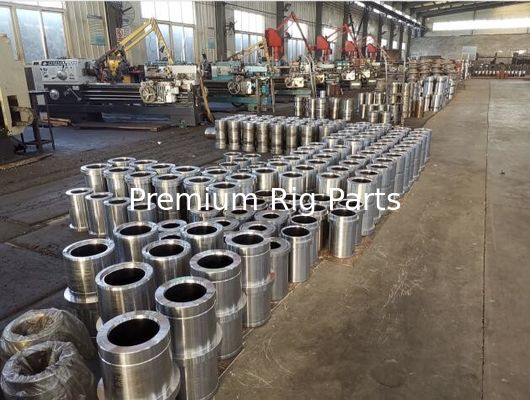

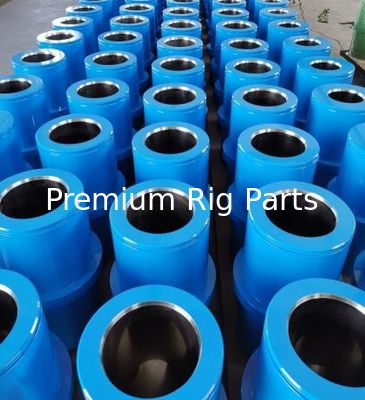

Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons; Bomco F1000 mud pump 13



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.
