Home ProductsMud Pump Module

TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

All Products
Mud Pump Chrome Liner (51)
Mud Pump Zirconia Liners (29)
Mud Pump Pistons (2)
Mud Pump Valves (2)
Mud Pump Module (37)
EWECO MUD PUMP (10)
Weatherford Mud Pumps (48)
ELLIS WILLIAMS (EWCO & LEWCO) (2)
Drillmec Mud Pumps (14)
National Mud Pumps (25)
Gardner Denver Mud Pumps (12)
TSC Mud Pump Fluid Ends (13)
Rongsheng Mud Pumps (19)
Power End of Mud Pumps (23)
Ideco Mud Pumps (9)
Honghua Mud Pump Parts (8)
Well Service Pump Packing and Seals (16)
OILWELL Mud Pumps (20)
EMSCO Mud Pumps (9)
Oilfield Bearings (12)
Drilling Instruments (1)
Handling Equipment (1)
Wirth TPK Mud Pumps (2)
Southwest Pump Parts (12)
Bentec Mud Pumps (1)
Cameron LEWCO (3)
LS-NATIONAL OILWELL (5)
Certification
Good quality Mud Pump Zirconia Liners for sales
I'm Online Chat Now

TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

China TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier
TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump, supplier

Large Image :  TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

Product Details:

Place of Origin: China
Brand Name: TSC, NATIONAL, OILWELL, GARDNER DNEVER, DRILLMEC
Certification: API
Model Number: 14P220 MUD PUMP, NATIONAL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitablt to shipment by sea and air
Delivery Time: Some in stock
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,Hydraulic,diesel
Pressure: High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil,Chemical
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Theory: Centrifugal Pump,Diaphragm Pump
Type: Mud Pump Weight: 100-3700kg,760kg
Color: Blue,red And So On,Green,yellow,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept,Applicable Condition: New

TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

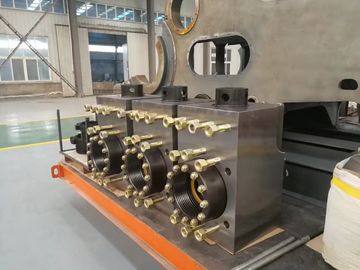

TSC Fluid end module of mud pumps:



Mud Pump Models Module with Stud Mud Pump Models Module with Stud



Continental Emsco F-800 / 1000 6999-0086-02 National 12-P-160 Discharge 1292240
Continental Emsco FB-1300 / 1600 6316-0357-00 National 12-P-160 Suction 1292243
Gardner Denver TEE 200PJH029B National 14-P-220 Discharge 1295601
Gardner Denver PAH 200PJH029B National 14-P-220 Suction 1295604
Gardner Denver PZ-7/8/9 205PZL029D Module, WF400 TSC-SP-WF400-01
Gardner Denver PZ-10/11 202PZL029B Module, WF700 TSC-SP-WF700-01
Ideco T-800 / 1000 551-458 Module, WF1300B TSC-SP-WF1300-01
Ideco T-1000 / 1300 551-122-01 Module, WF1300C TSC-SP-WF1300-02
Oilwell A-850-PT / A-1100-PT 10300181 Module, WF1300BH TSC-SP-WF1300-03
Oilwell A-1400-PT / A-1700-PT 10300181 Module, WF1600A TSC-SP-WF700-01
National 8-P-80 Discarge 1291280 Module, WF1600B TSC-SP-WF1600-01
National 8-P-80 Suction 1290338 Module, WF1600BH TSC-SP-WF1600-02
National 9-P-100 Discharge 1293240 Module, WF1600L TSC-SP-WF1600-03
National 9-P-100 Suction 1290338 Module, WF1600LH TSC-SP-WF1600-05
National 10-P-130 Discharge 1290335 Module, WF1600S TSC-SP-WF1600-06
National 10-P-130 Suction 1290338 Module, WF2000 TSC-SP-WF2000-01
    Module, WF2200 TSC-SP-WF2200-01





TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.



TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model:



WF1300 triplex Pump,WF1300BH,WF1300,WF-1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.



www.t-s-c.com







TSC PART # DESCRIPTION WEIGHT
TS-1293240 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30&31) 1365
TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 ) 680
TS-2408019 STUD, THREADED RING 3.12
TS-6300220 NUT, THREADED RING STUD 0.74
TS-2408030 STUD, POWER FRAME 1.75
TS-6300200 NUT, POWER FRAME STUD 0.5
TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 1.75
TS-6300200 NUT, STUD (BLIND RING AND WELD NECK FLANGES) 0.5
TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE 9.5
TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 0.94
TS-6511416 PIN, DOWELL 0.5
TS-1292141 BUSHING,VALVE GUIDE 1
TS-1292140 RETAINER, VALVE GUIDE BUSHING 1
TS-1540126 GASKET, VALVE COVER 0.2
TS-1290174 RETAINER, SEAL 38
TS-1290178 SCREW, ADJUSTING WEDGE 3
TS-G-1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 7
TS-1290181 SPRING, WEDGE 1
TS-1290308 RING, THREADED 77
TS-1290307 CAP, VALVE COVER (THREADED) 70
TS-1290315 WASHER, WEDGE ADJUSTING SCREW 0.15
TS-6300160 NUT, WEDGE ADJUSTING SCREW 0.5
TS-2410031427 SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER 0.05
TS-1290343 ADAPTER, DISCHARGE CONNECTOR 5
TS-2410031348 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 0.05
TS-1290342 CONNECTOR, DISCHARGE 16.75
TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 0.05
TS-1290357 PLATE, WEAR 10
TS-1293165 BUSHING, LINER(SAME AS 8P-80 & 10P-130) 110
TS-2408018 STUD, LINER BUSHING 1.2
TS-6300160 NUT, LINER BUSHING STUD 0.5
TS-1293166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37) 150
TS-7000448-11 CAPSCREW, LINER CLAMP 0.05
TS-6309120 NUT, LINER CAPSCREW 0.12
TS-1290169 PIN, CONNECTOR 0.15
TS-1290168 CONNECTOR, LINER CLAMP 0.2
TS-6571420 PIN, SPRING 1
TS-1290344 SEAL, MODULE & WEARPLATE 0.2
TS-1590051 SEAL, SUCTION MANIFOLD 0.2



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,

NATIONAL 10-P-130
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION WEIGHT
01 TS-1290335 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30,&31) 1430
02 TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 ) 680
03 TS-2408019 STUD, THREADED RING 3.12
04 TS-6300220 NUT, THREADED RING STUD 0.73
05 TS-2408020 STUD, POWER FRAME 1.5
06 TS-6300240 NUT, POWER FRAME STUD 0.5
07 TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 1.75
08 TS-6300220 NUT, STUD (BLIND RING AND WELD NECK FLANGES) 0.73
09 TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE 9.5
10 TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 0.94
11 TS-6511416 PIN, DOWELL 0.5
12 TS-1292141 BUSHING,VALVE GUIDE 1
13 TS-1292140 RETAINER, VALVE GUIDE BUSHING 1
14 TS-1540126 GASKET, VALVE COVER 0.2
15 TS-1290174 RETAINER, SEAL 38
16 TS-1290178 SCREW, ADJUSTING WEDGE 3
17 TS-G1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 7
18 TS-1290181 SPRING, WEDGE 1
19 TS-1290308 RING, THREADED 77
20 TS-1290307 CAP, VALVE COVER (THREADED) 57
21 TS-1290315 WASHER, WEDGE ADJUSTING SCREW 0.5
22 TS-6300160 NUT, WEDGE ADJUSTING SCREW 0.5
23 TS-1290343 ADAPTER, DISCHARGE CONNECTOR 5
24 TS-2410031427 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 0.5
25 TS-1290342 CONNECTOR, DISCHARGE 16.75
26 TS-2410031348 SEAL,SUCTION CONNECTOR TO DISCHARGE ADAPTER 0.5
27 TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 0.5
28 TS-1290357 PLATE, WEAR 10
29 TS-1290165 BUSHING, LINER 110
30 TS-2408018 STUD, LINER BUSHING 1.2
31 TS-6300160 NUT, LINER BUSHING STUD 0.5
32 TS-1290166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37) 150
33 TS-700044811 CAPSCREW, LINER CLAMP 0.5
34 TS-6309120 NUT, LINER CAPSCREW 0.12
35 TS-1290169 PIN, CONNECTOR 0.15
36 TS-1290168 CONNECTOR, LINER CLAMP 1
37 TS-6571420 PIN, SPRING 1
38 TS-1290344 SEAL, MODULE & WEARPLATE 0.5
39 TS-1590051 SEAL, SUCTION MANIFOLD 0.5



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



TSC PART # DESCRIPTION WEIGHT
TS-205PZL029D FLUID END MODULE STUDDED (INCLUDES 1-9 )
TS-79L188 STUD, FRAME & LINER CLAMP
TS-50B36 NUT (FOR ABOVE)
TS-79L73 STUD, FRAME
TS-50AQ30 NUT (FOR ABOVE)
TS-79AL6 STUD, VALVE COVER
TS-50B34 NUT (FOR ABOVE)
TS-202PZL110 STUD, DISCHARGE MANIFOLD
TS-50B34 NUT (FOR ABOVE)
TS-2011861 RING, VALVE COVER GASKET EXPANDER
TS-2011862(G-749) GASKET, VALVE COVER
TS-2007674 BUSHING, VALVE GUIDE
TS-2011860 COVER, VALVE
TS-2011699 RING, VALVE COVER THREADED
TS-2011857 CAP, VALVE COVER LOCK
TS-2011701 PLATE, RETAINER
TS-2011700 GUIDE, VALVE SUCTION
TS-95W2 WASHER, LOCK 1/2" 316SS
TS-655EE06S SCREW 1/2"x1 3/4" 316SS HX HD C/S
TS-25AL35 GASKET, DISCHARGE MANIFOLD
TS-25G41 GASKET, SUCTION MANIFOLD
TS-1PV14 CLAMP, LINER
TS-2011706 ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000压裂泵的型号及规格
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM压裂泵的型号
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



Push Rod Subassembly
L-2 Spacer
  Loc Qty Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 3 316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 3 8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 3 316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM 4 3 316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 3 316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 3 316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 3 70.33739.
Seal, Push Rod, L-Spacer, HT-400TM 8 6 316.10014.

Discharge Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover, HT-400TM 1 3 316.2102. 316.2202. 316.2202. 316.2502. 316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM 2 6 316.2107. 316.23091. 316.23091. 316.24044 316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 3 316.21052. 316.22052. 316.22052. 316.25052 316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 6 316.21051. 316.22051. 316.22051. 316.25051. 316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 6 316.22004. 316.22004. 316.22004. 316.22006 316.22006
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043

Suction Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 3 316.22977. 316.22977. 316.23034 316.25840. 316.25840.
Boot, Suction and Stop, HT-400TM 2 6 316.25233. 316.25233. 316.25233 316.25233. 316.25233.
Spring, Lock, HT-400 3 3 316.2125. 316.2125. 316.22252. 316.22253. 316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 6 316.22004. 316.22004. 316.22004. 316.22006. 316.22006.
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043


Plunger/cylender Head Cover Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 6 316.2102. 316.2102. 316.2202. 316.2502. 316.2506.
Cover, Cylinder Head, HT-400TM 2 3 316.2107. 316.2107. 316.2207. 316.2407. 316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 6 316.21052. 316.21052. 316.22052. 316.25052. 316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 6 316.21051. 316.21051. 316.22051. 316.25051. 316.25073.
Nose, Plunger, HT-400TM 5 3 316.2131. 316.2231. 316.2331. 316.2331. 316.2331.
Seal, Plunger Nose Assembly, HT-400TM 6 3 316.2130. 316.2230. 316.2330. 316.2330. 316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM 7 3 316.21026. 316.22294. 316.23085. 316.24296. 316.25162.
Tie Rod, Plunger, HT-400TM 8 3 316.21028. 316.21028. 316.21028. 316.25165. 316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 3 316.21059. 316.22302. 316.23089. 316.24336. 316.25172.


Fluid-end/flange discharge section subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 1   316.22980. 316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 1 316.21676. 316.23019. 316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 1 316.21677. 316.23017. 316.23017.
Seal, Discharge passage,HT-400TM 2 6 315.27117. 316.2547. 316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 4 316.11621. 316.11621. 316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 4 316.23013.   316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 1 316.27488. 316.27488. 316.27488.
Nut, Top Tie Bolt, HT-400TM, TC 6 2 316.25501. 316.25501. 316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 2 316.22493. 316.22493. 316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 2 316.2145. 316.2545. 316.2545.
Fluid End Section, HT-400TM PUMP,Not Sleeved 9 3 316.21951. 316.22982. 316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF 10 2 70.32760.   70.32760.

Packing Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Adapter, Header 1 3 316.21503 316.22503 316.23503 316.24503 316.27503
Ring Header 2 3 316.21501 316.22501 316.23501 316.24501 316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service 3 1 316.21525 316.22525 316.23525 316.24525 316.27525
Ring, Backup, Packing, 4-in x 5-in. 4 3 316.21393 316.22393 316.23393 316.24393 316.27393
Carrier, Seal and Packing, 4-in 5 3 316.21396 316.22396 316.23396 316.24396 316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in 6 3 316.21395 316.22395 316.23395 316.24395 316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in 7 3 8.34040 8.34045 8.34049 8.34053 8.34058



TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,



CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES
ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6323-0100-20 ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) 1
1 0-6323-0108-00 MODULE, DISCHARGE STUDDED 3
2 0-6323-0109-00 MODULE, SUCTION STUDDED 3
3 0-6323-0087-90 RETAINER, THREADED 6
4 0-6323-0086-90 RING, THREADED 6
5 0-6323-0083-00 COVER, VALVE POT 6
6 0-6323-0103-00 GUIDE W/ BUSHING, VALVE 6
7 0-6323-0126-00 HANDLER, VALVE POT 6
8 0-6323-0107-20 COVER, LINER END 3
9 0-6323-0129-00 DISC, BAFFLE 3
10 0-6323-0085-00 MANIFOLD, SUCTION 1
11 0-6316-0105-95 FLANGE, SUCTION 1
12 0-6317-0074-95 FLANGE, BLIND 1
13 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
14 0-6323-0097-90 WEAR PLATE 3
15 0-6323-0096-00 RING, LINER THREAD 3
16 0-6323-0099-00 LINER LOCK 3
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, SUCTION TO DISCHAGE MODULE 3
19 0-6323-0127-00 SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
20 0-7602-1600-47 O-RING (LINER LOCK RING) 3
21 7817600456 O-RING (SUCTION MANIFOLD) 3
22 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
23 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F.E.) 3
24 0-7501-0051-00 SCREW, RETAINER 24
25 7822095 WIRE, SAFETY SST 72
26 0-6323-0101-00 RING, LINER LOCK 3
27 7000534 SCREW, SUCTION FLANGE HEX HD 36
28 0-7601-0630-20 NUT, HEX 1" - 8 36
29 0-6323-0125-00 SEAL, VALVE POT COVER 6
30 0-7601-0333-30 SCREW, SUCTION MANIFOLD TO F.E. 18











CONTINENTAL EMSCO FC-1600 7500 PSI FLUID END MODULE & ACCESSORIES

ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6316-0452-10 ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS) 1
1 0-6316-0610-01 MODULE, DISCHARGE STUDDED 3
2 0-6316-0611-00 MODULE, SUCTION STUDDED 3
3   STUD, THREADED RING
4   NUT, THREADED RING AND DISCHARGE MANIFOLD STUD
5   STUD, SUCTION TO DISCHARGE MODULE 6
6   NUT, SUCTION TO DISCHARGE MODULE AND POWER FRAME STUD 6
7   STUD, DISCHARGE MANIFOLD
8   STUD, POWER FRAME
9 0-7601-0342-29 CAPSCREW, SPACER FLANGE 24
10 0-6316-0614-00 THREADED RETAINER 6
11 0-6316-0615-00 THREADED RING 6
12 0-7601-0040-11 EYEBOLT, 3/4 X 4.50 6
13 0-6316-0616-00 VALVE POT COVER 6
14 0-6316-0585-00 VALVE GUIDE 6
15 0-6323-0093-00 RETAINER, VALVE GUIDE 6
16   CAPSCREW, VALVE GUIDE RETAINER
16A   LOCK WASHER, VALVE GUIDE RETAINER CAPSCREW
17 0-6316-0583-00 BUSHING, VALVE GUIDE 6
18 0-6316-0092-00 GASKET, VALVE COVER 6
19 0-7601-0820-10 DOWEL PIN 12
20 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
21 0-6316-0565-00 GASKET, FE MODULE & WEAR PLATE 6
22 0-7602-1600-25 O-RING (DISCHARGE TO F.E.) 3
23 0-6316-0566-01 DISCHARGE MANIFOLD (NOT SHOWN) 1
24 0-6316-0613-00 SPACER FLANGE 3
25 0-6316-0367-20 LINER LOCK 3
26 0-6316-0668-00 WEAR PLATE 3
27 0-6316-0523-00 SUCTION MANIFOLD (NOT SHOWN) 1
28 0-7601-0333-30 CAPSCREW, SUCTION MANIFOLD 18





TSC WF1600L Mud Pump, TSC WF2000 MUD PUMP, TSC WF2200 MUD PUMP, WF1600L Mud Pump, WF1300 Mud Pump , WF400_Mud_Pump,





Item Description Part No.
  Complete Assembly 8476-A
1 Threaded Flange 4476
2 Screw Gland 4597
3 Plug Assembly w/Guide & Bushing 4676-2A
4 Valve Guide 4776
5 Valve Guide Bushing 4700-I
6 Valve Guide Screw 4016-98
7 Valve Cover Stud w/Nut 4015-54
8 Power End Stud w/Nut 4015-95
9 Liner Retainer Capscrew 4017-65
10 Liner Retainer Flange 6476
11 Liner Retainer Nut 6576
12 Suction Module Stud w/Nut 4018-17
13 Suction Module (Studded) 8476-2
14 Discharge Module (Studded) 8476-1
15 Dowel Pin 8488-5
16 Wear Plate 8476-3
17 Valve Cover Plug Seal P-107
18 Module & Wear Plate Seal 2988
19 Piston Rod 1286-32
20 Sub Rod 1286-1
21 Rod Clamp w/Spray System 1286-CW





Item Description Part No.
  Complete Assembly 8488-1
1 Discharge Module 8488-1
2 Suction Module 8488-2
3 Screw Gland 4575
4 Threaded Flange 4475
5 Wear Plate 8488-4
6 Plug Assembly w/Guide & Bushing 4675-1A
7 Liner Retainer Flange 6488-1
8 Liner Retainer Nut 6588-1
9 Module Gasket 2988
10 Valve Cover Plug Seal P-129
11 Valve Guide Bushing 4700-I
12 Valve Guide 4775
13 Valve Cover Stud w/Nut 4015-2
14 Power End Stud w/Nut 4016-96
15 Liner Retainer Capscrew 4017-4
16 Suction Module Stud w/Nut 4016-97
17 Wear Plate Gasket 2974-I
18 Liner Retainer Screw Set 8488-7
19 Dowel Pin 8488-5
20 Discharge Manifold Stud 4016-3
21 Valve Guide Screw 4018-88
22 Piston Rod 1290-25
23 Sub Rod 1290-1
24 Piston Rod Connecting Stud 1290-2
25 Rod Clamp w/Spray System 1290-CW



Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Mud Pump Module Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
