BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

China BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier
BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER supplier

Large Image :  BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

Product Details:

Place of Origin: CHINA
Brand Name: Bomco, WIRTH, NATIONAL, HONGHUA, SOUTHWEST
Certification: API
Model Number: F-1600, 14P-220, 14T-2200 MUD PUMP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 200 use
Packaging Details: BY sea and air
Delivery Time: In Stock
Payment Terms: T/T, L/C
Supply Ability: 10 per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Diesel
Pressure: High Pressure Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Type: Mud Pump Color: Red And So On
Material: Cast Iron/stainless Steel Mud Suction Pump Warranty: 12 Months
Product Name: Mud Pump Oem: Can Be Accept
Condition: New

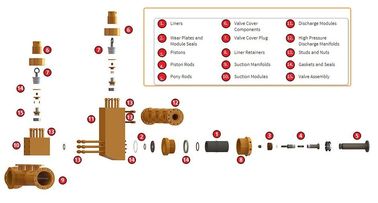

BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12



SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING

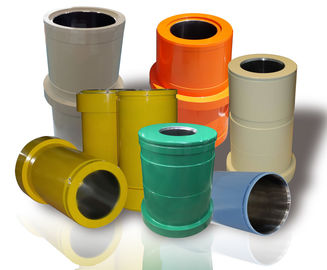

PISTONS LINERS LINER SEALS
SIZE FAIL-SAFE DUAL-DURO® BLACK CAT GRAYLOY® ZIRCONIA RUBBER URETHANE
4" 76BFS 76BDD 76BBC 1376G06   2930-06 2930-06U
4 1/4" 77BFS 77BDD 77BBC 1376G07   2930-07 2930-07U
4 1/2" 78BFS 78BDD 78BBC 1376G08 1376ZIR08 2930-08 2930-08U
4 3/4" 79BFS 79BDD 79BBC 1376G09 1376ZIR09 2930-09 2930-09U
5" 81BFS 81BDD 81BBC 1376G1 1376ZIR1 2930-1 2930-1U
5 1/4" 82BFS 82BDD 82BBC 1376G2   2930-2 2930-2U
5 1/2" 83BFS 83BDD 83BBC 1376G3 1376ZIR3 2930-3 2930-3U
5 3/4" 84BFS 84BDD 84BBC 1376G4 1376ZIR4 2930-4 2930-4U
6" 85BFS 85BDD 85BBC 1376G5 1376ZIR5 2930-5 2930-5U
6 1/4" 86BFS 86BDD 86BBC 1376G6 1376ZIR6 2930-6 2930-6U
6 1/2" 87BFS 87BDD 87BBC 1376G7 1376ZIR7 2930-7 2930-7U
6 3/4" 88BFS 88BDD 88BBC 1376G8   2930-8 2930-8U
7" 89BFS 89BDD 89BBC 1376G9 1376ZIR9 2930-9 2930-9U
7 1/4" 91BFS 91BDD 91BBC 1376G10 1376ZIR10 2974-11 2974-11U
7 1/2" 92BFS 92BDD 92BBC 1376G11   2974-11 2974-11U


BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

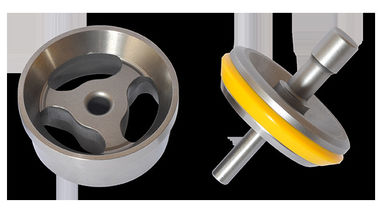

VALVES & SEATS (BOMCO F-1600)



TYPE



VALVE



INSERT



SPRING



STAINLESS SPRING



SEAT



PULLER HEAD

PULLER HEAD

STYLE
SOUTHWEST (Full Open) 773-1B N/A SW5710-110L N/A 873-1 SWTM3750 SPLIT JAW

FULL OPEN-ROUGHNECK

(Cast N Place Insert)

 SWND-6V2 N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(High Temp)

 SWND-6V2H N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(w/Replaceable Urethane Insert)

 SWND-6V1 SWND-6I SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE
3 WEB DOUBLE ANGLE O-RING SWR0500119 SWR0515845 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D



3 J HOOK
3 WEB (High Temp) SWR0520586 SWR0520585 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D
3 WEB STANDARD PLATE SWR0505038 SWR0504890 SWR0515575 SWR0514790 SWR0512436 SWTM3-7D
4 WEB SWU5B-EH SWUDD-6AB SW5710-115 N/A SW6ADD-B4 SWTM4-6 4 J HOOK
4 WEB (High Temp) SWU5B-EHHT SWUDD-6ABHT SW5710-115 N/A SW6ADD-B4 SWTM4-6





BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

SOUTHWEST 8482-25A

National 14-P-220 7500 PSI

ITEM P/N DESCRIPTION QTY
  8482-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1 6382G-XX LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL 3
3 8482-5 WEARPLATE 3
4 2988 WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) 6
10A 1200H30 HOSE 3
10B 1200160 PIPE 3
10C 4019-77 ROD CLAMP BOLT 12
11 6200G82 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4609-25 PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-26 SUCTION MODULE 3
33 8482-27 DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
36 8382-25 DISCHARGE MANIFOLD 1



BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER



SOUTHWEST 8482-A

National 14P-220

ITEM P/N DESCRIPTION QTY
  8482-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3, 4, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 32, 33, 34)
1 6382G-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)) 3
2 2930-XX LINER SEAL 3
3 8482-4 WEARPLATE 3
4 2930-09 WEARPLATE & MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (W/ ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY USE 6282C) 6
10A 1200H30 HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS) 6
10B 1200160 PIPE (3/8” X 16” GALVANIZED AND THREADED ON ONE END) 6
10C 4019-77 ROD CLAMP BOLT (3/4-10 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 6200G82 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4482 THREADED FLANGE 6
17 4582 SCREW GLAND 6
18 4682A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS, AND BUSHING) 6
19 P113 HP VALVE COVER PLUG NITRILE SEAL 6
20 4782R VALVE GUIDE (COMPLETE W/ BUSHING #4700I) 6
21 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4019-75 VALVE GUIDE SCREW 24
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 1/2-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4019-74 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-2S SUCTION MODULE 3
33 8482-1D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 2982-3 DISCHARGE END ADAPTER SEAL 2
36 4017-4 DISCHARGE END ADAPTER CAP SCREW 24
37 BX169 RING JOINT 2
38 4020-21 BLIND FLANGE STUDS (WITH SW PART# HHN1125-7 1-1/8”-7 HEAVY HEX NUTS) 24
39 2982-2 DISCHARGE CONNECTOR SEAL 4
40 8382-1 DISCHARGE CONNECTOR 2
41 8382-3 DISCHARGE CONNECTOR BACK-UP RING 2
42 4018-18 DISCHARGE CONNECTOR CAPSCREW 16
43 2982-1 DISCHARGE CONNECTOR END SEAL 2
44 8382-2 DISCHARGE CONNECTOR ADAPTER 2
45 8382-4 DISCHARGE END FLANGE ADAPTER 2



BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





EMSCO     FC-2200
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4"           012180170 1502052 011102926   015180102
4 1/4"
4 1/2"         012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5"         012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07551550 05551550* 07916882   012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07551600 05551600* 07916882   012180395 012180394 1502060 011103629 015180269 015180268
6 1/4"   05551625 07916882     012180493 1502061 011103322 015180285 015180284
6 1/2" 07551650 05551650* 07916882   012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 07551700 05551700* 07916882   012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2" 07551750 05551750* 07916882   012180685 012180683     015180369 015180367
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700369       Valve Cover 07916850
VALVE-Urethane Insert 9700382   060140100   Cylinder Head
VALVE-Rubber Insert N/A   060112059   Plug Seal
SEAT 9702652   061100608   HYDRA-LOK OEM MISSION L
SPRING 055413421   055413690   Complete Assembly
SPRING-Stainless 055402945
INSERT-Urethane 9705236   062400536   MODULES OEM MISSION L
INSERT-Rubber N/A   062400437   Complete Assembly EMSFEMFC2200CA
SEAT PULLER ASSEMBLIES Discharge Module Studded EMSFEMFC2200DIS
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded EMSFEMFC2200SUC
Puller Head 8402256   181235706   One Piece OEM Style Studded







BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

CONTINENTAL EMSCO FC-2200
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: EMSCO INDEX
    EMSFEMFC2200CA FLUID END MODULE COMPLETE ASSEMBLY
1 6323010800 EMSFEMFC2200DIS DISCHARGE MODULE-STUDDED
2 6323010900 EMSFEMFC2200SUC SUCTION MODULE-STUDDED
3 6323008700   THREADED RETAINER
4 6323008600   THREADED RING
5 6323008300   VALVE POT COVER
6 6323010300   VALVE GUIDE W/ BUSHING
7 6323012600   HANDLER, VALVE POT
8 6323008500   SUCTION MANIFOLD
9 6316010595   FLANGE, SUCTION
10 6317007495   FLANGE, BLIND
11 6323008410   DISCHARGE MANIFOLD, 7500 PSI
12 6323009700   WEAR PLATE
13
14 6323009600   LINER THREAD RING
15 6323009900   LINER LOCK
16
17 6323012120   FEED PIPING ASSEMBLY
18 6323009300   RETAINER, VALVE GUIDE
19 6323012800   SEAL, F. E. MODULAR
20 6323012700   WEAR PLATE LINER SEAL
21
22 7602160052   O-RING (SUCTION MANIFOLD)
23 7602160061   O-RING (SUCTION MANIFOLD TO F. E.)
24 7602160030   O-RING (DISCHARGE MANIFOLD TO F. E.)
25 7501005100   SCREW, RETAINER
26 7602528072   WIRE, SOFT IRON .06 X 144.00
27
28 7601033139   SCREW, HEX HD 1" - 8 X 5.00
29 7601063020   NUT, HEX 1" - 8





BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: EMSCO INDEX
    EMSFEMFC1600CA FLUID END MODULE COMPLETE ASSEMBLY
1 6316061001 EMSFEMFC1600DIS DISCHARGE MODULE-STUDDED
2 6316061100 EMSFEMFC1600SUC SUCTION MODULE-STUDDED
3 6316061400   THREADED RETAINER
4 6316061500   THREADED RING
5 6316061600   VALVE POT COVER
6 6316058500   VALVE GUIDE
7 7601004011   EYEBOLT, 3/4 X 4.50
8 6316052300   SUCTION MANIFOLD
9 6316052490   FLANGE, SUCTION
10 6317007490   FLANGE, BLIND
11 6316056601   DISCHARGE MANIFOLD
12 6316066800   WEAR PLATE
13 6316061300   SPACER FLANGE
14
15 6316036720   LINER LOCK
16 7601082010   DOWEL PINS
17
18 6323009300   RETAINER, VALVE GUIDE
19 6316056500   SEAL, F. E. MODULE
20 7601034229   HX SOCKET HD CAPSCREW 1 1/2 - 6 X 5.00
21 6316058300   BUSHING, VALVE GUIDE
22 7602160052   O-RING (SUCTION MANIFOLD)
23 7602160061   O-RING (SUCTION MANIFOLD TO F. E.)
24 7602160025   O-RING (DISCHARGE TO F. E.)
25 7501005100   SCREW RETAINER



BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900

BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER





ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72




FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER

ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12





















Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Southwest Pump Parts Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
