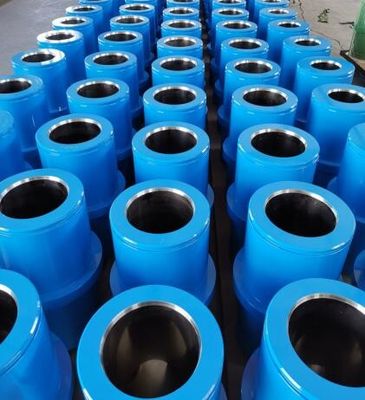

SOUTHWEST 8477-25A Gardner Denver PZ-11/PZ-10, National mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,Water,drill Rig | Power: | Electric,Hydraulic,diesel |
|---|---|---|---|
| Pressure: | High Pressure,Low Pressure | Application: | Mining,oil,Chemical |
| Structure: | Piston Pump,Single-stage Pump | Fuel: | Diesel,Electric |
| Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm Pump |
| Type: | Mud Pump | Weight: | 100-3700kg |
| Color: | Blue,red And So On,Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
| Warranty: | 12 Months | Feature: | Compact Size |
| Product Name: | Mud Pump | Head: | 10m Mud Suction Pump |
| Oem: | Can Be Accept,Applicable | Inlet Pipe (mm)/(in): | DN200 / 8 |
| Condition: | New |
SOUTHWEST 8477-25A
Gardner Denver PZ-11/PZ-10

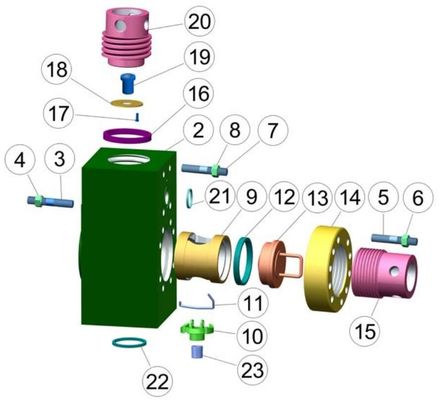

| ITEM | P/N | DESCRIPTION | QTY. |
| 8477-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39) | ||
| 1 |
1367Y-XX 1367AY-XX |
LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX) LINER 6 ¼” THRU 6 ¾” |
3 |
| 2 |
2930-XXU** 2974-XXU** |
LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾” |
3 |
| 3 | 8477-29 | ALIGNMENT RING | 3 |
| 4 | 8477-30 | WEARPLATE (REPLACES WEARPLATE NO. 8477-28) | 3 |
| 5 | 2988U** | WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL | 9 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 7 | 568-225 | PISTON O-RING | 3 |
| 8 | 6278-25 | PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 10 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 11 | 6279-1 | SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) | 3 |
| 12 | 1277CW | ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) | 3 |
| 12A | 1200120 | SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 12B | 4018-96 | BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12C | 1200H30 | HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) | 3 |
| 13 | 1200G77 | PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) | 3 |
| 14 | VALVE | 6 | |
| 15 | VALVE INSERT | 6 | |
| 16 | VALVE SPRING | 6 | |
| 17 | VALVE SEAT | 6 | |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 | |
| 18 | 4488-25 | VALVE COVER FLANGE | 6 |
| 19 | 4588-25 | SCREW GLAND | 6 |
| 20 | 4688-25 | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) | 6 |
| 21 | P115 | HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) | 6 |
| 22 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 26 | 4019-46 | POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 27 | 6477-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-45 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 29 | 6577-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-44 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4017-77 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8577-25 | SUCTION MANIFOLD | 1 |
| 33 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8477-26 | SUCTION MODULE | 3 |
| 35 | 8477-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8377-27 | DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) | 1 |
| 38 | 4019-45 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 12 |
Southwest
A1400/1700PT Mud Pump

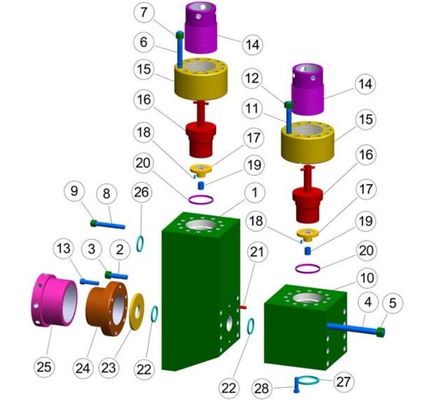

| "L" MODULE FOR A-1400-PT, A-1700PT | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | |
| 8488-1A | FEMA17ASSYSW | FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) | 3 | |
| 1 | 8488-1D | FEMA17DISSW | MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) | 3 |
| 2 | 8488-2S | FEMA17SUCSW | MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) | 3 |
| 3 | 6488-1 | OWA17LRPLATESW | PLATE, LINER RETAINER | 3 |
| 4 | 4017-4 | PEP68 | CAPSCREW, ALLEN HEAD | 24 |
| 5 | 4016-3 | OWA17DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 6 | EMSF1000TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 7 | 4016-96 | OWA17PFSSW | STUD, POWER FRAME | 12 |
| 8 | PEP55 | NUT, POWER FRAME STUD | 12 | |
| 9 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 10 | EMSF1000PFSN | NUT, FOR ABOVE STUD | 18 | |
| 11 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 12 | PZ789LCSN | NUT, THREADED RING STUD | 72 | |
| 13 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 14 | 2988 | 1290344 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 15 | 2974-1 | 20100008 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 16 | 8488-4 | PP602850 | PLATE, WEAR | 3 |
| 17 | 6588-1 | OWA17LLNSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4018-88 | PEP73 | SCREW, VALVE COVER RETAINER | 12 |
| 20 | 4775R | OWA17VGSW | GUIDE, VALVE (INCLUDES ITEMS 20,& 22) | 6 |
| 21 | 4675-1A | OWA17VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) | 6 |
| 22 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 80102003 | 10300201 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 568-345 | 99609345 | GASKET, DISCHARGE MANIFOLD | 3 |
| 27 | 4018-70 | 75634382 | CAPSCREW,SUCTION MANIFOLD | 24 |
| 28 | 8488-7 | PEP90 | SETSCREW, LINER RETAINER | 9 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.
Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.
Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the
industry while partnering with our customers to share the focus on generating solutions.

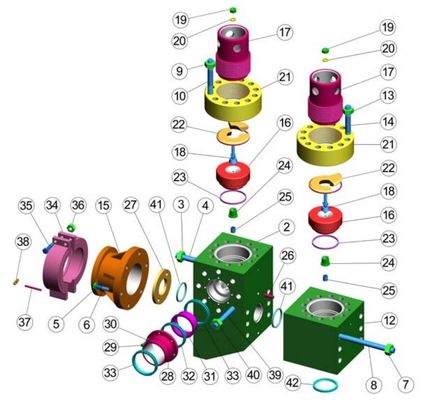

| CONTINENTAL EMSCO FC-2200 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | |||
| EMSFEMFC2200CA | FLUID END MODULE COMPLETE ASSEMBLY | |||
| 1 | 0-6323-0108-00 | EMSFEMFC2200DIS | DISCHARGE MODULE-STUDDED | |
| 2 | 0-6323-0109-00 | EMSFEMFC2200SUC | SUCTION MODULE-STUDDED | |
| 3 | 0-6323-0087-00 | THREADED RETAINER | ||
| 4 | 0-6323-0086-00 | THREADED RING | ||
| 5 | 0-6323-0083-00 | VALVE POT COVER | ||
| 6 | 0-6323-0103-00 | VALVE GUIDE W/ BUSHING | ||
| 7 | 0-6323-0126-00 | HANDLER, VALVE POT | ||
| 8 | 0-6323-0085-00 | SUCTION MANIFOLD | ||
| 9 | 0-6316-0105-95 | FLANGE, SUCTION | ||
| 10 | 0-6317-0074-95 | FLANGE, BLIND | ||
| 11 | 0-6323-0084-10 | DISCHARGE MANIFOLD, 7500 PSI | ||
| 12 | 0-6323-0097-00 | WEAR PLATE | ||
| 13 | ||||
| 14 | 0-6323-0096-00 | LINER THREAD RING | ||
| 15 | 0-6323-0099-00 | LINER LOCK | ||
| 16 | ||||
| 17 | 0-6323-0121-20 | FEED PIPING ASSEMBLY | ||
| 18 | 0-6323-0093-00 | RETAINER, VALVE GUIDE | ||
| 19 | 0-6323-0128-00 | SEAL, F. E. MODULAR | ||
| 20 | 0-6323-0127-00 | WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | ||
| 21 | ||||
| 22 | 0-7602-1600-52 | O-RING (SUCTION MANIFOLD) | ||
| 23 | 0-7602-1600-61 | O-RING (SUCTION MANIFOLD TO F. E.) | ||
| 24 | 0-7602-1600-30 | O-RING (DISCHARGE MANIFOLD TO F. E.) | ||
| 25 | 0-7501-0051-00 | SCREW, RETAINER | ||
| 26 | 0-7602-5280-72 | WIRE, SOFT IRON .06 X 144.00 | ||
| 27 | ||||
| 28 | 0-7601-0331-39 | SCREW, HEX HD 1" - 8 X 5.00 | ||
| 29 | 0-7601-0630-20 | NUT, HEX 1" - 8 | ||
| 30 | ||||
| 31 | 0-7601-0333-30 | SCREW, HEX HD 7/8-9 X 2.50 GR 5 | ||
