SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP

Place of Origin	China
Brand Name	OILWELL, DRILLMEC, WEATHERFORD, NATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certification	API
Model Number	12P160,14P220, FB1600, PZ10, F1000, A1700PT
Minimum Order Quantity	1 piece
Price	1 to 500 usd
Packaging Details	Suitable to shipment by sea and air
Delivery Time	In stock
Payment Terms	T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability	3000 per month

Product Details

Usage	Oil,Water,drill Rig	Power	Hydraulic,diesel
Pressure	High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump	Application	Mining,oil,Chemical
Structure	Piston Pump	Fuel	Gasoline,air Operated,diesel Engine And Hydraulic Motor For Option
Standard Or Nonstandard	Standard	Type	Mud Pump
Color	Red And So On,Green Or Per Customer Design	Material	Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc
Warranty	12 Months	Product Name	Mud Pump
Oem	Can Be Accept	Condition	New

Leave a Message

Product Description

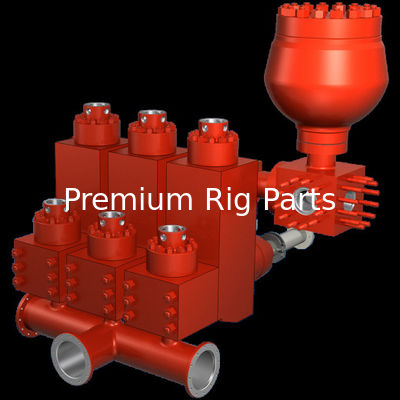

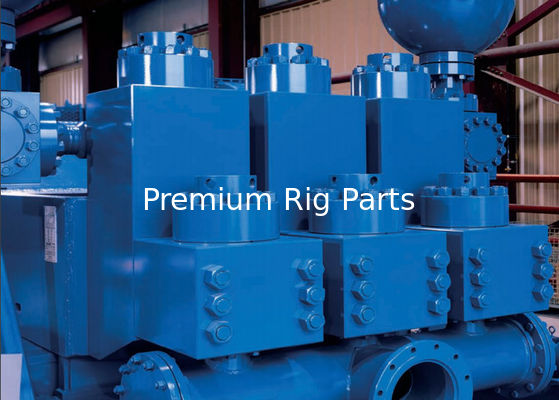

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 0

SOUTHWEST 7500 P.S.I.

NATIONAL 14-P-220

9” X 14”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8482-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1	6382G-XX	LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2930-XX	LINER SEAL	3
3	8482-5	WEARPLATE	3
4	2988	WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U)	6
5	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
6	568-225	PISTON O-RING	3
7	6282W32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	6282-1	SUB ROD	3
10	6282CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C)	6
10A	1200H30	HOSE	3
10B	1200160	PIPE	3
10C	4019-77	ROD CLAMP BOLT	12
11	6200G82	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
16	4476	THREADED FLANGE	6
17	4597	SCREW GLAND	6
18	4609-25	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22	6
19	P119	HP VALVE COVER PLUG SEAL	6
20	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU)	6
22	4016-98	VALVE GUIDE SCREW	12
23	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT)	84
24	4019-24	POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT)	30

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 P.S.I.	NATIONAL 14-P-220	9” X 14”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
25	6482	LINER RETAINER FLANGE	3
26	4015-52	LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	18
27	6582	LINER RETAINER NUT	3
28	4020-6	SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW	24
30	8582	SUCTION MANIFOLD	1
31	AJO326	SUCTION MANIFOLD SEAL	3
32	8482-26	SUCTION MODULE	3
33	8482-27	DISCHARGE MODULE	3
34	8488-5	DOWEL PIN	6
35	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	18
36	8382-25	DISCHARGE MANIFOLD	1
37	2988	DISCHARGE MANIFOLD SEAL	3

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 1

SOUTHWEST 5000 P.S.I.

NATIONAL 12-P-160

7-1/2” X 12”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8476-4A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1	1376YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX))	3
2	2930-XX	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))	3
3	8476-3	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE)	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	1286-32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1286-1	SUB ROD	3
10	1286CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)	6
10A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
10B	1286CWYFP14	DUAL SPRAY PIPE	3
10C	4020-29	ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	1200G86	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
	4476-6A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23)	6
16	4476	THREADED FLANGE	6
17	4597	SCREW GLAND	6
18	4676-6A	PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING)	6
19	P119	HP VALVE COVER PLUG SEAL	6
20	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE)	6
22	4016-98	VALVE GUIDE SCREW	12
23	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT)	30
25	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
26	6476	LINER RETAINER FLANGE	3

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 P.S.I.	NATIONAL 12-P-160	7-1/2” X 12”

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 2

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
27	6576	LINER RETAINER NUT	3
28	4018-17	SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	24
30	8576-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
31	AJO419R	SUCTION MANIFOLD GASKET	3
32	8476-6S	SUCTION MODULE (STUDDED ONLY)	3
33	8476-5D	DISCHARGE MODULE (STUDDED ONLY)	3
34	8488-5	DOWEL PIN	6
		*ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY*
47	4018-18	DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER)	16
48	4018-39	DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW	16
49	8376-1	DISCHARGE CONNECTOR	2
50	8376-2	DISCHARGE ADAPTER	2
51	8376-3	BACK-UP RING	4
52	8376-4	DISCHARGE SPACER FLANGE	2
53	2976-3	DISCHARGE SPACER FLANGE SEAL	2
54	2976-1	DISCHARGE CONNECTOR / ADAPTER PACKING	2
55	2976-2	DISCHARGE CONNECTOR / ADAPTER PACKING	4
56	R44D	RING JOINT GASKET	2
57	4017-22	DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT)	16
58	5000-5BFLANGE	BLIND FLANGE 5"	1
59	9070012	PONY ROD SEAL	12
60	80491292	SPLASH GUARD	3
61	8376-50A	COMPLETE STRAINER CROSS	1
62	8376-50	STUDDED STRAINER CROSS ONLY	1

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 3

SOUTHWEST 7500 P.S.I.

GARDNER DENVER PZ11/10

6 ¾” X 11”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8477-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39)
1	1367Y-XX 1367AY-XX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX) LINER 6 ¼” THRU 6 ¾”	3
2	2930-XXU 2974-XXU	LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾”	3
3	8477-29	ALIGNMENT RING	3
4	8477-30	WEARPLATE (REPLACES WEARPLATE NO. 8477-28)	3
5	2988U**	WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL	9
6	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))	3
7	568-225	PISTON O-RING	3
8	6278-25	PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT)	3
9	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
10	1290-2	PISTON ROD CONNECTING STUD	3
11	6279-1	SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1)	3
12	1277CW	ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C)	3
12A	1200120	SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END)	3
12B	4018-96	BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12C	1200H30	HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS)	3
13	1200G77	PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88)	3
14	SEE PAGE	VALVE	6
15	SEE PAGE	VALVE INSERT	6
16	SEE PAGE	VALVE SPRING	6
17	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)	1
18	4488-25	VALVE COVER FLANGE	6
19	4588-25	SCREW GLAND	6
20	4688-25	PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24)	6
21	P115	HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE)	6
22	4788-25R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
23	4700I	VALVE GUIDE BUSHING	6
24	4018-18	VALVE GUIDE SCREW	12

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 P.S.I.	GARDNER DENVER PZ11/10	6 ¾” X 11”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
25	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	72
26	4019-46	POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	24
27	6477-25	LINER RETAINER FLANGE	3
28	4019-45	LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	24
29	6577-25	LINER RETAINER NUT	3
30	4019-44	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	18
31	4017-77	SUCTION MANIFOLD CAP SCREW	24
32	8577-25	SUCTION MANIFOLD	1
33	AJO245	SUCTION MANIFOLD SEAL	3
34	8477-26	SUCTION MODULE	3
35	8477-27	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	8377-27	DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping)	1
38	4019-45	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	12
39	LW500	LOCKWASHER 1/2	12

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 4

SOUTHWEST 7500 P.S.I.

NATIONAL 12P-160

7-1/2” X 12”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8476-25A	FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1	1376YXX	LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2930-XX	LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))	3
3	8476-3	WEARPLATE	3
4	2988	WEARPLATE, AND DISCHARGE MANIFOLD SEAL	6
5	XX-BYY	PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	1286-32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1286-1	SUB ROD	3
10	1286CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)	6
10A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
10B	1286CWYFP14	PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END)	3
10C	4020-29	BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	1200G86	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)	1
16	4488-25	THREADED FLANGE	6
17	4588-25	SCREW GLAND	6
18	4690-25A	PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22)	6
19	P115	HP VALVE COVER PLUG NITRILE SEAL	6
20	4788-25R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING	6
22	4018-88	VALVE GUIDE SCREW	12

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 5

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 P.S.I.	NATIONAL 12P-160	7-1/2” X 12”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
23	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT)	30
25	6476	LINER RETAINER FLANGE	3
26	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
27	6576	LINER RETAINER NUT	3
28	4019-54	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	24
30	8576-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
31	AJO419R	SUCTION MANIFOLD GASKET	3
32	8476-26S	SUCTION MODULE	3
33	8476-27D	DISCHARGE MODULE	3
34	8488-5	DOWEL PIN	6
35	8376-25MOD	DISCHARGE MANIFOLD	1
36	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)	18
37	LW500	LOCKWASHER	12
38	LW875	LOCKWASHER	24
39	9070012	PONY ROD SEAL	12
40	80491292	SPLASH GUARD	3

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 0

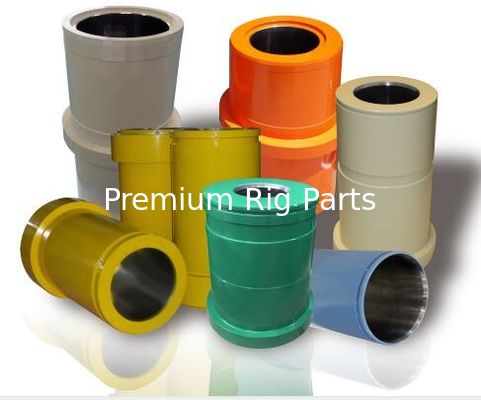

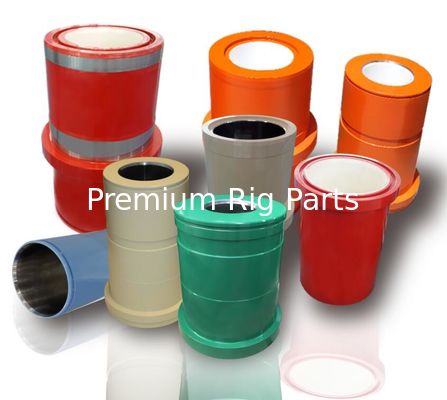

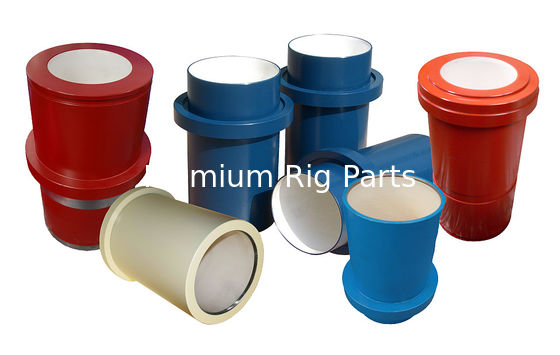

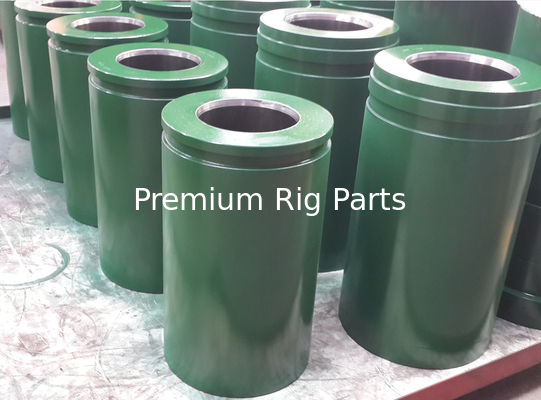

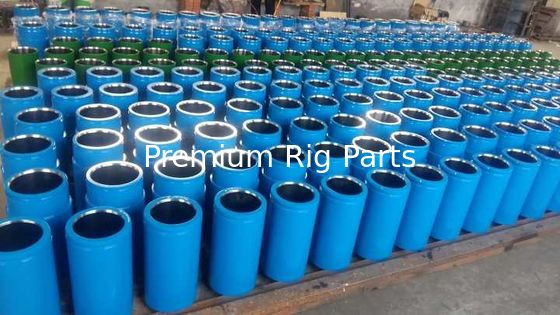

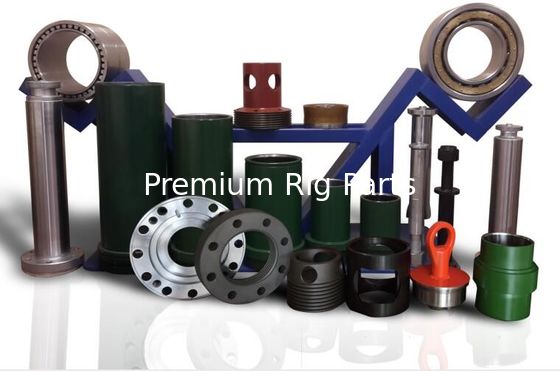

High Chrome Sleeve Liner

The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size.

Rated for all drilling operations up to 5,000 PSI and above

Bore hardness is 62 - 69 Rockwell

Plip design to prevent inner sleeve slippage

Extremely long service life

Mud Pump Models Liner Inch	4”	4-1/2”	5”	5-1/2”	6”	6-1/2”	7”
Continental Emsco F-800 / 1000	/	05495450	05495500	05495550	05495600	05495650	05495700
Continental Emsco FB-1300 / 1600	05499400	05499450	05499500	05499550	05499600	05499650	05499700
Continental Emsco FC-2200	/	/	05551500	05551550	05551600	05551650	05551700
Gardner Denver PAH-275	PA I3940 05519400	PA 13945 05445450	PA 13950 05445500	/	/	/	/
Gardner Denver PZ-7	PY13940	PY13945	PY13950 05493087	PY13955 05493085	PY13960 05493083	PY13965 05493081	PY13970 05493079
Gardner Denver PZ-8/9	206PZJ456 05493400	205PZJ456 05493450	204PZJ456 05493500	203PZJ456 05493550	202PZJ456 05493600	200PZJ456 05493650	207PZJ456 05493700
Gardner Denver PZ-10/11	206PZL456 05496400	205PZL456 05496450	204PZL456 05496500	203PZL456 05496550	202PZL456 05496600	201PZL456 05496650	200PZL456 05496700
Gardner Denver PZL	206PZL456 05496400	205PZL456 05496450	204PZL456 05496500	203PZL456 05496550	202PZL456 05496600	201PZL456 05496650	200PZL456 05496700
Gardner Denver PZL-B-7500 PSI	/	/	05561500HP	05561550HP	05561600HP	05561650HP	05561700HP
Gardner Denver PZL W/SWFE 7500 PSI	05465400HP	05465450HP	05465500HP	05465550HP	05465600HP	05465650HP	05465700HP
Gardner Denver PX-11 7500 PSI	/	/	05561500HP	05561550HP	05561600HP	05561650HP	05561700HP
Ideco T-500	/	05512450	05512500	05512550	05512600	05512650	05512700
Ideco T-800 / 1000	05502400	05502450	05502500	05502550	05502600	05502650	05502700
Ideco T-1300 / 1600	/	05507450	05507500	05507550	05507600	05507650	05507700
National 7P-50	05466040	05466045	05466050	05466055	05466060	/	/
National 8-P-80	05464400	05464450	05464500	05464550	05464600	05464650	/
National 9-P-100 / 10-P-130	05465400	05465450	05465500	05465550	05465600	05465650	/
National 12-P-160	05466400	05466450	05466500	05466550	05466600	05466650	05466700
National 14-P-220	05545400	05545450	05545500	05545550	05545600	05545650	05545700
National JWS-165/340	05531400	05531450	/	/	/	/	/
National JWS-400	05524400	05524450	05524500	05524550	05524600	/	/
Oilwell HD-1700-PT	/	/	05326500	05326550	05326600	05326650	05326700
Oilwell A-600-PT	05329400	05329450	05329500	05329550	05329600	05329650	05329700
Oilwell A-850-PT / A-1100-PT	05330400	05330450	05330500	05330550	05330600	05330650	05330700
Oilwell A-1400-PT / A-1700-PT	05326400	05326450	05326500	05326550	05326600	05326650	05326700

Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

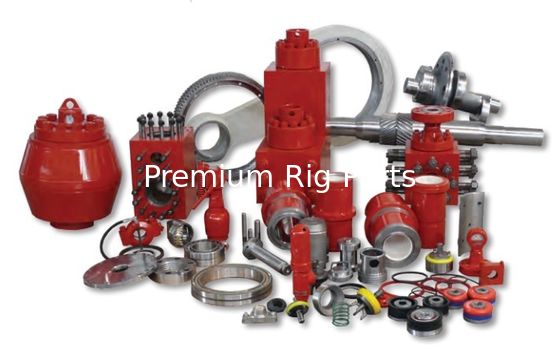

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 7

TECHNICAL PARAMETERS

Model	F-500	F-800	F-1000	F-1300
Max. Liner Size × Stroke	170×191 (6-3/4×7.5)	170×229 (6-3/4×9)	170×254 (6-3/4×10)	180×305 (7×12)
Strokes Rating, r/min	165	150	140	120
Power Rating, kW(HP)	373(500)	597 (800)	746 (1000)	969 (1300)
Gear Type	4.286:1	4.185:1	4.207:1	4.206:1
Suction Inlet Flange , in	8	10	12	12
Discharge Outlet Flange , in	4	5	5	5
Pinion Shaft Dia., mm(in)	139.7(5-1/2)	177.8(7)	196.9(7-3/4)	215.9(8-1/2)
Key, mm(in)	31.75×31.75 (1-1/4×1-1/4)	44.45×44.45 (1-3/4×1-3/4)	50.8×50.8 (2×2)	50.8×50.8 (2×2)
Valve Cavity	Valve-Over-Valve, API #5	Valve-Over-Valve, API #6	Valve-Over-Valve, API #6	Valve-Over-Valve, API #7
Approx. Weight, kg(lb)	9770 (21540)	14500 (31970)	18790 (41420)	26700 (54170)

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 8

TECHNICAL PARAMETERS

Model	F-1600/1600L	F-1600HL	F-2200	F-2200HL
Type	Triplex single acting piston	Triplex single acting piston	Triplex single acting piston	Triplex single acting piston
Max. Liner size×stroke length	180×305(7×12)	190×305(7-1/2×12)	230×356(9×14)	230×356(9×14)
Strokes Rating,r/min	120	120	105	105
Power Rating,kW(HP)	1193 (1600)	1193 (1600)	1640 (2200)	1640 (2200)
Gear Ratio	4.206:1	4.206:1	3.512:1	3.512:1
Discharge Outlet Flange, in	5″ Flange, 5000 psi	5″ Flange, 10000psi(110 mm)	5″ Flange, 5000 psi(130 mm)	5″ Flange, 10000 psi(130 mm)
Pinion Shaft Dia.,mm(in)	215.9(8-1/2)	215.9(8-1/2)	254(10)	254(10)
Key,mm(in)	50.8×50.8 (2×2)	50.8×50.8 (2×2)	63.5×44.45 (2-1/2×1-3/4)	63.5×44.45 (2-1/2×1-3/4)
Valve Pots	Valve-Over-Valve,API #7/ L type,API #7	L type, API #7	Valve-Over -Valve,API #8	L type, API #8
Approx. Weight ,kg(lb)	24791 (54660) /27020kg(57100lb)	29400 (64820)	38460 (84790)	44000 (94980)

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 9

In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power ﬁve cylinder mud pumps designed by Bomco.

Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.

Technical Features

· F-1300, F-1600, F-1300L and F-1600L mud pump

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 10 has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.

· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.

· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.

· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.

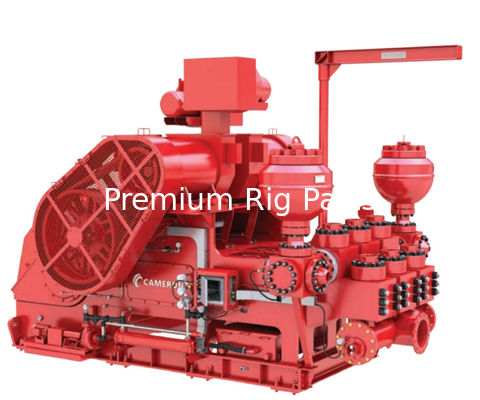

F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.

A1. Power End

Power end features:

· Continuous tooth herringbone gear.

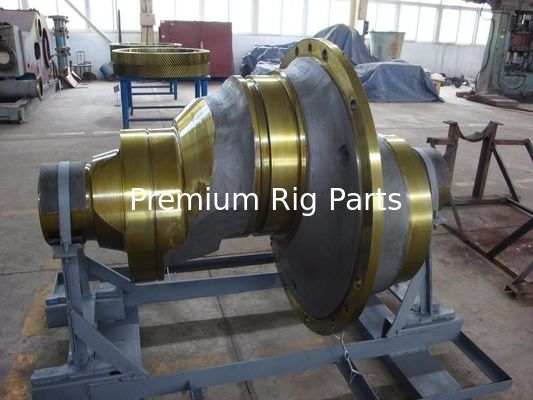

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 12

A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical ﬂuid end features good suction performance;

· L ﬂuid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

ﬁlter are ﬁtted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

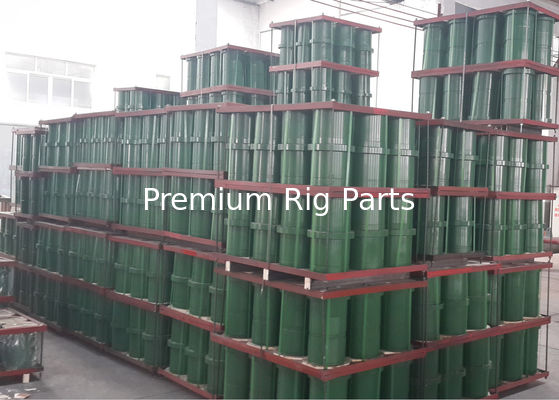

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

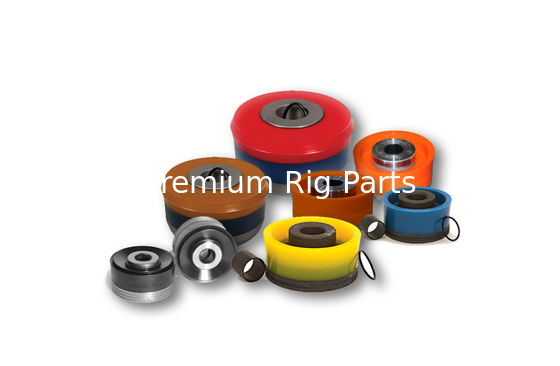

4. Pistons and Piston Rods

They are slide ﬁtted, sealed with rubber seal ring and ﬁnally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

ﬂuid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.

A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and ﬂush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling ﬂuid can rinse the contact surface between the piston and liner all the time. The durable ﬁxed spray pipe may be used, too.

A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterﬂy valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.

F1 -Series Drilling Mud Pumps

F1-series drilling mud pumps include power end, ﬂuid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 14

Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical ﬂuid end features good suction performance;

· Discharge damper, shear relief valve and ﬁve way discharge are ﬁtted at the discharge outlet.

Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.

Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterﬂy valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.

Ⅵ.Specifications

Model	F1-800	F1-1600
Type	Triplex single acting piston	Triplex single acting piston
Max. Liner size × strength	170×216mm (6 3/4″×8.5″)	180×280mm (7″×11″)
Strokes rating	160 r/min	130 r/min
Power Rating	597kW (800 hp)	1193kW (1600 hp)
Type of gear	Herringbone gear	Herringbone gear
Gear ratio	3.3143:1	3.7381:1
Lubrication	Forcing and splashing	Forcing and splashing
Suction inlet	8″ﬂange(203mm)	10″ﬂange(254mm)
Discharge outlet	4″Flange, 5000 psi	4″Flange, 5000 psi
Pinion Shaft Dia.	177.8mm(7″)	215.9mm(8-1/2″)
Key	44.45×44.45mm (1 3/4″×1 3/4″)	50.8×50.8mm (2″×2″)
Valve Pots	valve-over-valve,API #6	valve-over-valve,API #7
Approx. Weight	11536kg (25430lb)	20700kg (45635lb)

SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220, NATIONAL 12P160 MUD PUMP, BOMCO F1000 mud pump, Gardner Denver PZ11 mud pump, Weatherford MP16 mud pump, CAMERON W2214 MUD PUMP 15

Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
